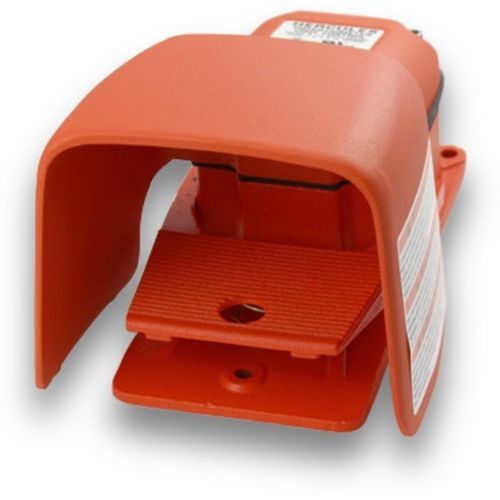

Control foot switch 500-HO-5K

potentiometermechanicalmomentary

Overview
Momentary • 5K OHM • No Auxiliary • Not Corded

Model / Price
500-HO-5K • $350.70
Switch Type: Linear, 2 Watt 5K ohm
Action: Momentary Variable Control
Circuitry: No Auxiliary (auxiliary contact optional)
Cable Entry: 3/4"-14 NPT threaded entry (single standard)
Housing Color: Orange (Painted Alert Orange)
Housing Material: Cast Iron
Shields & Guards: Oversized shield; protected by cast aluminum shield
Switch Connections: Solder terminal
Electrical Ratings: 15A, 125-250 VAC; 1/2 HP 125-250 VAC

Features & Benefits

• Rugged cast metal enclosure provides mass to keep the switch from sliding during operation
• Neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw for reliable sealing and grounding
• Three holes for rigid mounting to floor or equipment
• Selectable maximum resistance value to match drive requirements

Materials

• Treadle and housing constructed from cast iron for strength and durability
• Protected by a strong cast aluminum shield
• Painted Alert Orange
• Single 3/4"-14 NPT threaded conduit entry is standard
• Designed for use with variable speed motor drives and available in selected 2 watt linear values
• Depressing the treadle rotates the potentiometer from zero to the selected maximum resistance
• Treadle is spring loaded and returns to normal position when foot pressure is removed
• Auxiliary switch contact (optional) rated at 15A 125-250 VAC
• Switch operates at the beginning of the treadle stroke; up to 3 SPDT switches can be added and adjusted to operate at any point of the stroke

Options

• Special dual 1/2"-14 NPT threaded conduit entry and metric sizes available by special order
• Available in 5,000 Ω or 10,000 Ω values; other potentiometer values available by special order
• Models with cast aluminum base and covers available (except unshielded cover which is gray iron)

Enclosure & Purpose
NEMA Type 1, 2, 4, 13 • UL Enclosure Type 1, 2, 4, 13 • EN 60529 Degree of Protection • IP56 (IP68 upon request)

Applications

• Benders
• Box Markers
• Brakes
• Choppers
• Cleaners
• Closing Systems
• Conveyor Systems
• Crimping Machines
• Cut-Off Machines for Pipe and Tubing
• Cutters
• Cutting Machines
• Drilling Machines
• Drilling Tables
• Fabricators
• Filler Removal Machines
• Folding Machines
• Food Processing Equipment
• Forming Systems
• Grinders
• Grinding Machines
• Lacers
• Lathes
• Lifts
• Marking Systems
• Material Handlers
• Microscopes
• Missile Launching Control Systems
• Molding Machines
• Nibblers
• Notchers
• Oil Drilling Rigs
• Platforms
• Positioners
• Potters' Wheels
• Pullers
• Punching Equipment
• Rewind Systems
• Riveters
• Roll Groovers
• Routers
• Saws
• Sawmills
• Scrap Choppers
• Sewer Cleaning Equipment
• Shears
• Shoe Machines
• Shredders
• Space Shuttle
• Spinners
• Staplers
• Surgical Equipment
• Tables
• Testers
• Thread Rolling Machines
• Threading Machines
• Trimming, Beading and Forming Machines
• Beading & Forming Machines
• Tube-end Forming Machines
• Tube Expansion Devices
• Turn/Mill Centers
• Turners
• Turning Centers
• Turntables
• Tying & Bundling Machines
• Voltage Control
• Water Cannons
• Welders
• Winding Equipment
• Wire Drawing Systems

Technical specifications

• Model: 500-HO-5K
• Price (displayed): $350.70
• Switch Type: Linear, 2 Watt (5K ohm)
• Action: Momentary Variable Control
• Circuitry: No Auxiliary (auxiliary contact optional)
• Cable Entry: 3/4"-14 NPT threaded entry (single standard)
• Housing Color: Orange (Painted Alert Orange)
• Housing Material: Cast Iron (treadle and housing)
• Shields: Oversized shield; protected by cast aluminum shield
• Switch Connections: Solder terminal
• Electrical Ratings: 15A, 125-250 VAC; 1/2 HP 125-250 VAC
• Enclosure Ratings: NEMA Type 1,2,4,13; UL Enclosure Type 1,2,4,13; EN 60529 IP56 (IP68 upon request)
• Mechanical: Treadle rotates potentiometer from zero to selected maximum; treadle is spring loaded and returns to normal position
• Options: Dual 1/2"-14 NPT conduit entry and metric sizes available; available in 5,000 or 10,000 Ω values; other values by special order; aluminum base/cover options available
