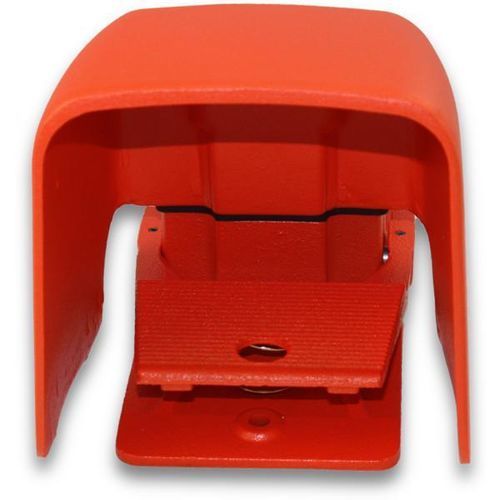

Control foot switch 500-A2HOX-10K

potentiometermomentaryDPDT

Overview
Momentary • 10K OHM • 2 Auxiliary • Not Corded

Model / Price
500-A2HOX-10K • $384.15

Core Specifications
Switch Type: Linear, 2 Watt, 10K ohm
Action: Momentary Variable Control
Circuitry: DPDT (Form CC) with 2 auxiliary contacts
Cable Entry: Single 3/4"-14 NPT threaded conduit entry (standard)
Housing Color: Alert Orange
Housing Material: Cast Iron
Shield: Extra oversized OX shield (cast aluminum)
Switch Connections: Solder terminals and quick-connect terminals available
Electrical Ratings: 15 A, 125-250 VAC; 1/2 HP at 125-250 VAC

Enclosure
NEMA Type 1, 2, 4, 13 • UL enclosure Type 1, 2, 4, 13 • EN 60529 Degree of Protection • IP56 standard (IP68 on request)

Purpose
Designed for drip-tight, dust-tight, watertight and oil-tight installations with an extra oversized shield for heavy-duty environments

Features & Benefits

• Rugged cast-iron housing providing weight and stability to prevent switch movement during operation
• Neoprene cover gasket, O-rings on the activating shaft and a separate ground screw included
• Three mounting holes for rigid floor or equipment attachment
• Potentiometer available in selected linear values; specify maximum resistance required

Materials

• Treadle and housing constructed from cast iron for mechanical strength
• Protected by a large cast-aluminum OX shield
• Finish: Painted Alert Orange
• Standard single 3/4"-14 NPT threaded conduit entry; metric and dual entries available on request
• Designed for use with variable-speed motor drives; available in selected 2 watt linear values
• Depressing the treadle rotates the potentiometer from zero to the selected maximum resistance
• Treadle is spring-loaded and returns to the normal position when foot pressure is removed
• Auxiliary contact (optional) rated at 15 A, 125-250 VAC
• Switch actuation can be set to operate at the beginning of the treadle stroke
• Up to three SPDT auxiliary switches can be added and adjusted to operate at any point of the treadle stroke

Options

• Dual 1/2"-14 NPT threaded conduit entry or metric conduit sizes available to OEMs on special order
• Available potentiometer values: 5KΩ or 10KΩ; other values by special order
• Models with cast-aluminum base and covers available (unshielded cover is gray iron)

Typical Applications

• Benders
• Box markers
• Brakes
• Choppers
• Cleaners
• Closing systems
• Conveyor systems
• Crimping machines
• Cut-off machines for pipe and tubing
• Cutters
• Cutting machines
• Drilling machines
• Drilling tables
• Fabricators
• Filler removal machines
• Folding machines
• Food processing equipment
• Forming systems
• Grinders
• Grinding machines
• Lacers
• Lathes
• Lifts
• Marking systems
• Material handlers
• Microscopes
• Missile launching control systems
• Molding machines
• Nibblers
• Notchers
• Oil drilling rigs
• Platforms
• Positioners
• Potter's wheels
• Pullers
• Punching equipment
• Rewind systems
• Riveters
• Roll groovers
• Routers
• Saws
• Sawmills
• Scrap choppers
• Sewer cleaning equipment
• Shears
• Shoe machines
• Shredders
• Space shuttle systems
• Spinners
• Staplers
• Surgical equipment
• Tables
• Testers
• Thread rolling machines
• Threading machines
• Trimming, beading and forming machines
• Beading & forming machines
• Tube-end forming machines
• Tube expansion devices
• Turn/mill centers
• Turners
• Turning centers
• Turntables
• Tying & bundling machines
• Voltage control
• Water cannons
• Welders
• Winding equipment
• Wire drawing systems

Technical specifications

• Model: 500-A2HOX-10K
• Switch type: Linear, 2 Watt, 10KΩ
• Action: Momentary variable control
• Circuitry: DPDT (Form CC) with 2 auxiliary contacts
• Cable entry: Single 3/4"-14 NPT threaded entry (standard)
• Housing material: Cast iron
• Shield: Extra oversized OX shield (cast aluminum)
• Switch connections: Solder terminals, quick-connect terminals
• Electrical rating: 15 A, 125-250 VAC; 1/2 HP at 125-250 VAC
• Enclosure ratings: NEMA Type 1, 2, 4, 13; UL Type 1, 2, 4, 13; EN 60529 IP56 (IP68 upon request)
• Finish: Painted Alert Orange
• Mounting: Three holes for rigid mounting
• Options: Dual 1/2"-14 NPT conduit entry, metric sizes, alternative potentiometer values (5K, 10K, others by special order), cast-aluminum base/covers available
