Control foot switch 500-AHOX-1K

potentiometermechanicalmomentary

Overview

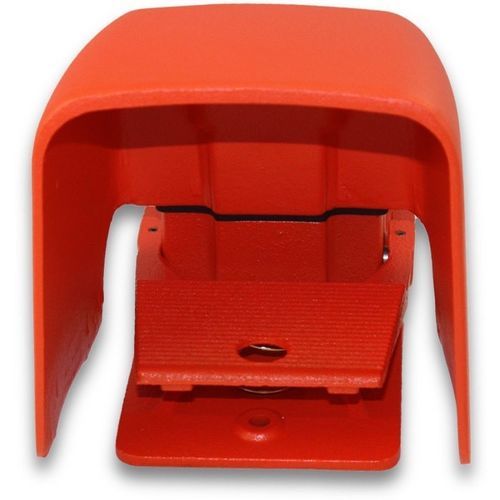

Hercules Potentiometer - OX Shield. Momentary • 1K OHM • 1 Auxiliary • Not Corded.

Product Data
Model: 500-AHOX-1K — Price: $387.80
Switch Type: Linear, 2 Watt (1K ohm for this model)
Actions: Momentary variable control
Circuitries: SPDT (Form C) with 1 auxiliary contact
Cable Entry: 3/4"-14 NPT threaded entry (single standard; special dual and metric options available)
Housing Color: Orange
Housing Material: Cast iron
Shields & Guards: Extra oversized shield; protected by cast aluminum shield
Switch Connections: Solder terminal, Quick-connect terminal
Electrical Ratings: 15A, 125-250 VAC; 1/2 HP 125-250 VAC

Enclosure
NEMA Type 1, 2, 4, 13 • UL enclosure Type 1, 2, 4, 13 • EN 60529 degree of protection • IP56 standard; IP68 upon request

Purpose
Designed to be drip tight, dust tight, watertight and oil tight; extra oversized shield for hazardous or exposed environments

Features & Benefits

• Rugged cast-metal enclosure provides weight and stability to prevent sliding during operation
• Neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw for reliable sealing and safety
• Three holes for rigid mounting to floor or equipment
• Specify the maximum resistance required; available in selected linear values

Materials

• Treadle and housing constructed from cast iron for strength and durability
• Protected by a strong cast aluminum shield
• Painted Alert Orange finish
• Single 3/4"-14 NPT threaded conduit entry is standard (special dual and metric options available)
• Depressing the treadle rotates the potentiometer from zero to the selected maximum resistance
• Spring-loaded treadle returns to normal position when foot pressure is removed
• Auxiliary switch contact rated at 15A, 125-250 VAC can be added
• Switch operation can be set at the beginning of the treadle stroke; up to three SPDT switches can be added and adjusted for operation at any point of the stroke
• Designed for use with variable-speed motor drives; available in selected 2 Watt linear values

Options

• Special dual 3/4"-14 NPT threaded conduit entry and metric sizes available to OEMs on special order
• Available potentiometer values: 5,000 Ohm or 10,000 Ohm; other values available by special order
• Models available with cast aluminum base and covers (except unshielded cover which is gray iron)

Applications

• Benders
• Box Marker
• Brakes
• Chopper
• Cleaner
• Closing System
• Conveyor Systems
• Crimping Machine
• Cut Off Machines for Pipe and Tubing
• Cutter
• Cutting Machine
• Drilling Machine
• Drilling Table
• Fabricator
• Filler Removal Machine
• Folding Machine
• Food Processing Equipment
• Forming System
• Grinder
• Grinding Machine
• Lacers
• Lathes
• Lift
• Marking System
• Material Handlers
• Microscopes
• Missile Launching Control Systems
• Molding Machines
• Nibbler
• Notcher
• Oil Drilling Rigs
• Platforms
• Positioners
• Potters Wheels
• Puller
• Punching Equipment
• Rewind System
• Riveter
• Roll Groover
• Router
• Saw
• Saw Mill
• Scrap Chopper
• Sewer Cleaning Equipment
• Shears
• Shoe Machine
• Shredder
• Space Shuttle
• Spinners
• Stapler
• Surgical Equipment
• Tables
• Tester
• Thread Rolling Machine
• Threading Machine
• Trimming Beading and Forming Machines
• Beading & Forming Machines
• Tube-end Forming Machines
• Tube Expansion Device
• Turn/Mill Centers
• Turner
• Turning Centers
• Turntable
• Tying & Bundling Machines
• Voltage Control
• Water Cannon
• Welders
• Winding Equipment
• Wire Drawing System

Technical specifications

• Model: 500-AHOX-1K
• Price: $387.80
• Switch Type: Linear, 2 Watt (1K ohm for this model)
• Actions: Momentary variable control
• Circuitries: SPDT (Form C) with 1 auxiliary contact (additional SPDT switches can be added)
• Cable Entry: 3/4"-14 NPT threaded entry (single standard; special dual and metric options available)
• Housing Color: Orange
• Housing Material: Cast iron (models available with cast aluminum base/covers)
• Shields & Guards: Extra oversized shield; protected by cast aluminum shield
• Switch Connections: Solder terminal, Quick-connect terminal
• Electrical Ratings: 15A, 125-250 VAC; 1/2 HP 125-250 VAC
• Enclosure Ratings: NEMA Type 1, 2, 4, 13; UL Type 1, 2, 4, 13; EN 60529; IP56 standard, IP68 upon request
• Mechanical: Spring-loaded treadle returns to normal position; potentiometer rotates from zero to selected maximum resistance; rigid mounting via three holes
