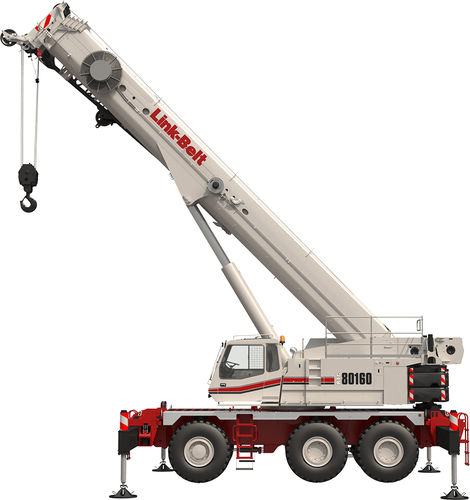

Crane truck RTC-80160 series II

2-axlerough terraindiesel-powered

• 160 ton | 150 mt • Nominal Capacity @ Radius : 160 US Tons @ 7' (145mt @2.1m) • Standard Boom : 42.3'-195.3' (12.9-59.5m) • Telescope System : Pin & Latching • Attachment - Option 1 : 10'-31'-55' (3-9.4-16.8m) Bi-Fold • Attachment - Option 2 : (1) or (2) or (3) 18' (5.5m) Lattice Extensions • Max. Tip Height : 311' (94.8m) • Max. Line Pull : 25,955 lbs. (115.45kN) • Max. Speed (ft per minute) : 435 fpm (132.9m/min) • Full power latching style boom with market leading capacity for its class • Innovative 10 ft (3.0m) fly is integral to one of the on-board fly options • Over 25 tons (22.68mt) capacity and one-load two-line lift procedures • Counterweight consists of modular-style counterweights for multiple transport and lift scenarios • Boom wear pads have Teflon pucks that lubricate the boom sections (No grease) • Four fly options feature four manual offset positions of 2°, 15°, 30°, and 45° or hydraulic offsets 2° - 45° • Next generation operator’s cab with improved visibility and ergonomics • Integral air conditioning - optional • Proven six-wheel hydrostatic drive with fully independent hydraulic suspension • 4-mode steering controlled from the steering wheel • Full-length flat deck with integrated steps and handholds • Large swing out engine hood doors for ease of service • Access ladders and folding guardrails • Cameras for right side upper, main and auxiliary winches
