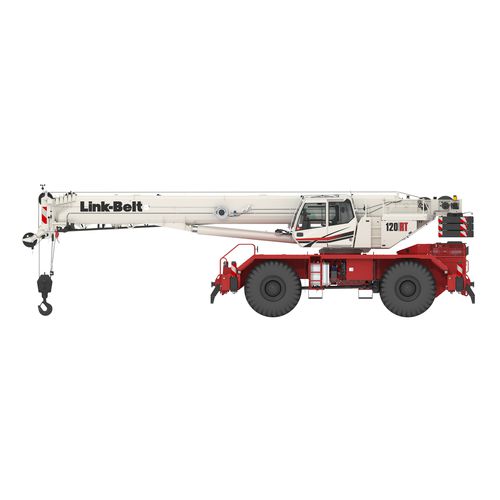

truck-mounted crane / boom / telescopic / lattice truck-mounted crane / boom / telescopic / lattice - 120|RT


  • Configuration:


  • Structure:

    boom, telescopic, lattice

  • Operating environment:

    rough terrain

  • Other characteristics:

    deck, transport

  • Lift capacity:

    120 t (132 us ton)

  • Working height:

    Min.: 11.67 m (38'03")

    Max.: 50 m (164'00")


Boom out-lifts all other competitors
Simple Operation- four boom extend modes
Link-Belt Pulse 2.0- total crane operating system with V-CALC and Telematics
Counterweight consists of three 9,600 lb (4354.5 kg) counterweight for multiple transport and life scenarios
Fly option features four offset positions (0°, 15°, 30°, and 45°)
Boom wear pads have Teflon pucks that lubricate the boom sections (greaseless boom)
Full LED lighting package with three on-board cameras
Transports at under 95,000 lbs (43,092 kg)
0-20 degree tilting cab
Bluetooth AM/FM radio with auxiliary input
Time delayed wipers
Internal rated capacity limiter bar
Integrated air conditioning with Automatic Temperature Control - Standard
Single or Dual Axis Controller options
All gauges and switches are back-lit for superior visibility in low light conditions
24 Volt electrical system
Greaseless 4-link suspension on the rear axle with an optional Hydro-Gas Ride™ system
4 steering modes
Full-length flat deck with integrated steps and handholds
