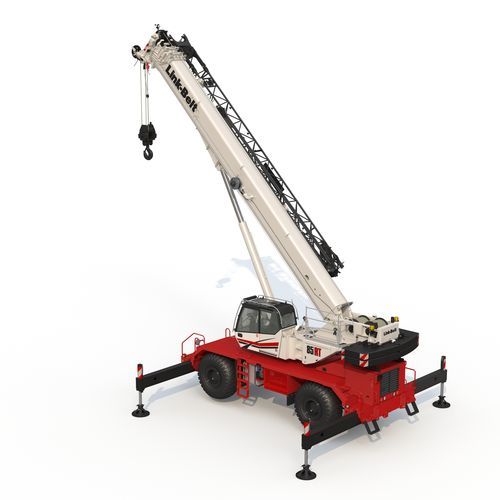

Truck-mounted crane 85|RT

boomtelescopicrough terrain

Nominal Capacity @ Radius 80 mt @ 2.5 m Telescope System Full Power Attachment - Option 1 10.7 m – 17.7 m Bi-Fold Lattice SmartFly Maximum Tip Height 63.7 m Maximum Line Pull 82.8 kN Key Features Greaseless 38 ft – 142 ft (11.6 m – 43.3 m) full-power five-section boom Optional two-piece SmartFly is available with offset positions of 2°, 15°, 30°, and 45° with no capacity deducted for stowed attachment Fully rigged transports under 105,000 lbs (47 627 kg) with counterweights installed Ergonomic operator’s cab designed with the operator in mind Link-Belt Pulse 2.0 load moment indicator display with V-CALC, allowing for virtually limitless outrigger configurations Full LED lighting with Link-Belt Vision Package – Standard 0° – 20° tilting cab flat deck design with anti-skid textured paint Three lockable storage boxes Six egress points with unbeatable engine access Four steering modes Greaseless 4-Link Suspension Fall arrest anchors Maximum Line Speed 147.8 m/min
