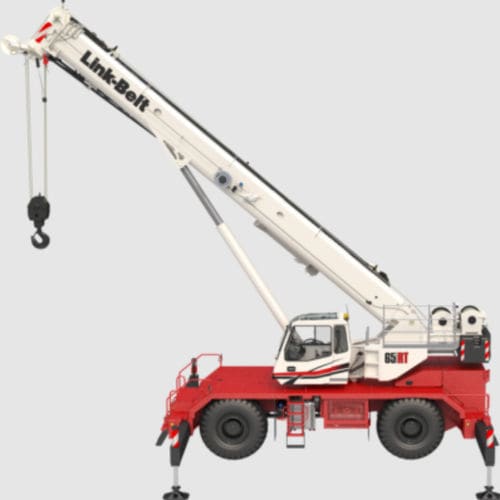

Mobile crane 65|RT

telescopicfor constructionlifting

Nominal Capacity @ Radius 60 mt @ 2.5 m Telescope System Full Power Attachment - Option 1 10.7 m – 17.7 m Bi-Fold Lattice Fly Attachment - Option 2 (1) or (2) 4.9 m Lattice Extension(s) Maximum Tip Height 64.5 m Maximum Line Pull 75.1 kN Maximum Line Speed 139.9 m/min Key Features Greaseless 38 ft – 115 ft (11.6 m – 35 m) full-power four-section boom Two-piece manual offsetable fly is available with offset positions of 2°, 15°, 30°, and 45° with no capacity deducted for stowed attachment One or two available lattice inserts to achieve a max tip height of 211.6 ft Fully rigged transports under 92,000 lbs (41 730 kg) with counterweight installed Ergonomic operator’s cab designed with the operator in mind Link-Belt Pulse operating system Full LED lighting with Link-Belt Vision Package – Standard Steel flat deck design with lockable storage box and anti-skid textured paint Six egress points with unbeatable engine access Four steering modes Greaseless 4-Link Suspension Fall arrest anchors
