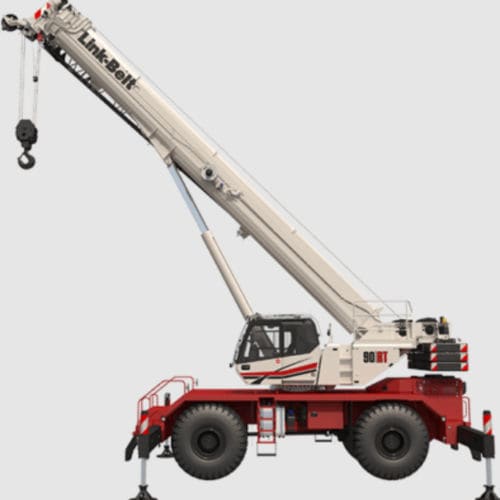

Mobile crane 90|RT

telescopicfor constructionlifting

Nominal Capacity @ Radius 81 mt @ 2.5 m Telescope System Full Power Attachment - Option 1 10.7 m – 17.7 m Bi-Fold Lattice SmartFly Attachment - Option 2 (1) 4.9 m Lattice Extension Maximum Tip Height 72.2 m Maximum Line Pull 105.1 kN Maximum Line Speed 107.9 m/min Key Features Greaseless 40.6 ft – 155 ft (12.3 m – 47.2 m) full-power five-section boom Two-piece manual offsetable SmartFly is available with offset positions of 2°, 15°, 30°, and 45° with no capacity deducted for stowed attachment One available lattice insert to achieve a max tip height of 237 ft (72.2 m) Fully rigged transports under 94,000 lbs (42 638 kg) with counterweights removed and one fall-off load Ergonomic operator’s cab designed with the operator in mind Link-Belt Pulse 2.0 load moment indicator display with V-CALC, allowing for virtually limitless outrigger configurations Full LED lighting with Link-Belt Vision Package – Standard 0° – 20° tilting cab Steel flat deck design with anti-skid textured paint Three lockable storage boxes Six egress points with unbeatable engine access Four steering modes Greaseless 4-Link Suspension Fall arrest anchors
