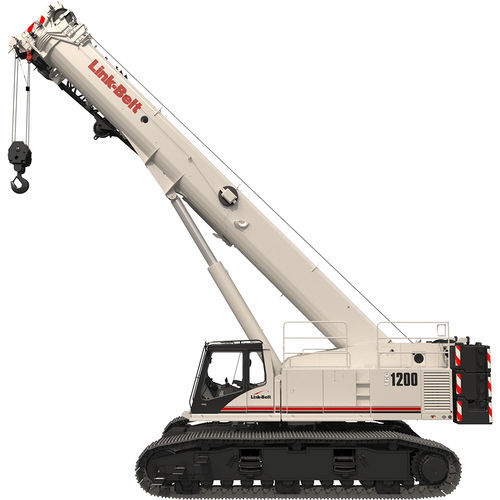

Crawler crane TCC-1200

boomfor constructionlifting

Base Rating 110 mt @ 3 m Main Boom Five-Section Formed Boom Length (min-max) 12.2 m – 45.7 m Telescope System Full Power Fly Attachment 3 m – 9.4 m – 16.7 m Maximum Tip Height 64.3 m Engine Make & Model Cummins QSL9 Tier 4 Final Horsepower 239 kW @ 1,800 rpm Maximum Line Pull / Maximum Line Speed 10 151 kg / 163.7 mpm Standard Upper Weights 23 133.2 kg Standard Lower Weights 11 339.81 kg Main Transport Load 40 370 kg Overflow Load 3 Key Features Five-section 40 ft – 150 ft (12.2 m – 45.7 m) full-power boom Maximum tip height of 211 ft (64.3 m) with SmartFly Variable-displacement piston-type main pumps with total horsepower control Main hoists powered through piston motors and winch-planetary drums grooved for 7/8 in. (22 mm) wire rope Three working gauges Multiple counterweight configurations Optional three-piece bi-fold fly with integral 10 ft (3.1 m) tip extension — perfect for two-load line picks Lightweight nylon head sheaves reduce overall machine weight and increase lift capacities Quick-reeve boom head with quick-reeve block allows rope to be easily reeved over boom head Hammerhead boom nose allows operator to work at high boom angles Greaseless wear pads Optional auxiliary sheave off main boom Pick and carry the whole chart List chart selections in LMI New state-of-the-art load moment indicator 40% gradeability Transports complete in three or four loads Main unit transports under 89,000 lbs (40 370 kg) with side frames removed Three overflow loads under 44,500 lbs (20 185 kg) Four widespread hydraulic jacks for easy side frame assembly/disassembly 2 mph (3.2 kph) high-speed travel Fold-up catwalks
