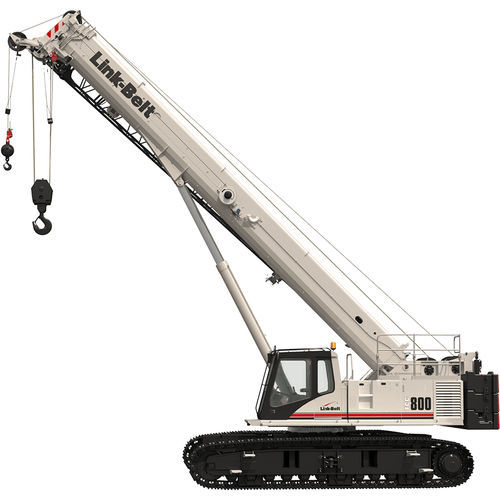

Crawler crane TCC-800

boomliftingtransport

Base Rating 75 mt @ 3 m Main Boom Four-Section Formed Boom Length (min-max) 11.8 m – 36.6 m Telescope System Full Power SmartFly Attachment 35 ft – 58 ft Maximum Tip Height 56.2 m Engine Make & Model Cummins QSB6.7 Tier 4 Final/Stage V Horsepower 173 kW @ 2,000 rpm Maximum Line Pull / Maximum Line Speed 8 248 kg / 136.8 mpm Standard Upper Weights 17 463 kg Standard Lower Weights 2 722 kg Main Transport Load 45 187 kg Overflow Load 1 Key Features Four-section 38.6 ft – 120 ft (11.8 m – 36.5 m) full-power boom — maximum tip height of 184.5 ft (56.2 m) with SmartFly V-CALC offers variable side frame track positions TCC-800 offers optional one- or two-piece 35 ft – 58 ft (10.6 m – 17.6 m) fly TCC-800 also includes a maximum four-degree list chart for increased performance in varying job site conditions Self-assembles with 38,500 lbs (17 463 kg) of upper counterweight and two 3,000 lb (1 360 kg) sections of car body counterweight TCC-800 moves in two loads: main unit transports under 100,000 lbs (45 359 kg) with fly, side frames attached, hook block and ball, lifting sheave, and a full tank of fuel Clearance height on a lowboy transport trailer stays below 13 ft (3.9 m)
