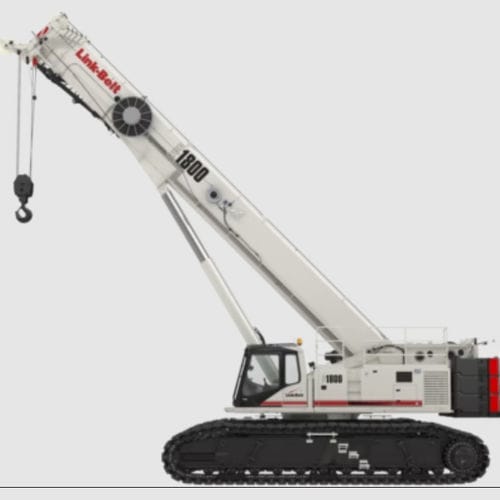

Crawler crane TCC-1800

boomfor constructionlifting

Base Rating 163 mt @ 2.5 m Main Boom Six-Section Formed Boom SmartFly Attachment 3.1 m – 9.9 m – 16.8 m Lattice Fly Extensions 1, 2, or 3 x 5.5 m Extensions Telescope System Pin & Latch Maximum Tip Height 95.8 m Engine Make & Model Cummins QSB6.7 Tier 4 Final/Stage V Horsepower 231 kW @ 2,200 rpm Maximum Line Pull / Maximum Line Speed 12 828 kg / 137.2 mpm Standard Upper Weights 34 926 kg Standard Lower Weights 4 082 kg Main Transport Load 48 973 kg Overflow Load 4 Key Features Greaseless 42.7 ft – 197.3 ft (13 m – 60.1 m) pin and latch six-section boom Standard boom features include a wireless anemometer, LED remote control boom flood light, and greaseless nylon sheaves Available three-piece manual or hydraulic offsetable SmartFly of 10 ft – 32.5 ft – 55 ft (3 m – 9.9 m – 16.8m) One, two, or three available lattice inserts to achieve a max tip height of 314.3 ft (95.8 m) Cummins engine, compatible with HVO fuel Tiltable air-conditioned operator’s cab Available HVAC Auxiliary Power Unit (APU) Link-Belt Pulse 2.0 touchscreen RCL display with live ground bearing pressure readings and fine metering 1° – 4° list charts selectable in Pulse 2.0 display Pick and carry charts across all level ground Robust, heavy-duty undercarriage featuring V-CALC technology for asymmetrical side frame configurations Standard remote control rigging and counterweight removal Standard Link-Belt Vision Package with rear, winch, and swing cameras and remote control upper work light Fall arrest anchors iCraneTrax telematics equipped Transports under 108,000 lbs (48 988 kg) with six fall-off loads fully configured
