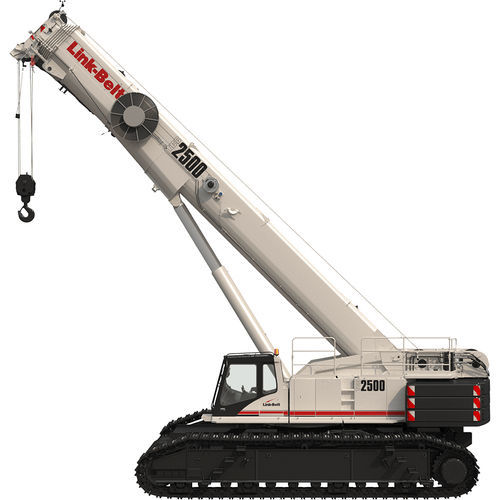

Crawler crane TCC-2500

boomfor constructionlifting

Base Rating 223 mt @ 2.8 m Main Boom Seven-Section Formed Boom Length (min-max) 13.3 m – 68 m Telescope System Pin & Latch Fly Attachment 3.7 m – 12.2 m – 20.4 m Lattice Fly Extensions 1 or 2 x 7.6 m Extensions Maximum Tip Height 105.4 m Engine Make & Model Cummins QSL9 Tier 4 Final Horsepower 239 kW @ 1,800 rpm Maximum Line Pull / Maximum Line Speed 12 965 kg / 123.1 mpm Standard Upper Weights 69.8 kg Standard Lower Weights 19.9 kg Main Transport Load 48 605 kg Overflow Load 7 Key Features 43.7 ft – 223 ft (13.3 m – 68 m) main boom with power pin and latch Optional three-piece fly (12 ft – 40 ft – 67 ft) with maximum tip height of 301 ft Optional two 25 ft (7.6 m) lattice boom extensions 351 ft (107 m) maximum tip height with extensions Eight boom modes for maximizing capacities Lightweight nylon head sheaves reduce overall machine weight and increase lift capacities Quick-reeve boom head with quick-reeve block allows rope to be easily reeved over boom head Hammerhead boom nose allows operator to work at high boom angles Greaseless wear pads Standard-equipped auxiliary sheave off main boom Pick and carry the whole chart 1, 2, 3 and 4 degree list chart selectable in RCL Transports complete in eight loads Main unit transports 107,154 lbs (48 604 kg) with side frames removed Seven overflow loads under 44,500 lbs (20 185 kg) each Hook and pin side frames with hydraulic pinning Four widespread hydraulic jacks for easy side frame assembly/disassembly 1.6 mph (2.6 kph) high-speed travel Fold-up catwalks
