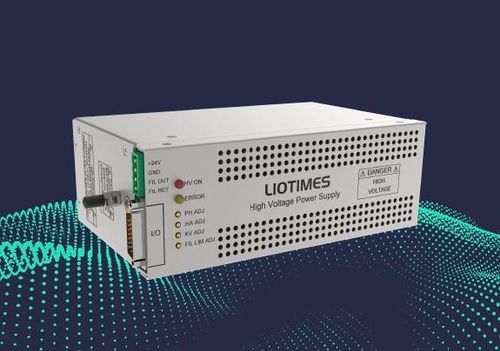

Benchtop power supply LPS-50P50B3

DC/DCsingle-outputwith overload protection

Product overview
The LPS-50P50B3 is a compact high-voltage DC power supply with an adjustable output from 0 to 50 kV and a maximum current of 1.0 mA (max 50 W). It is designed for integration in laboratory instruments, scientific research setups, electrostatic systems and X-ray equipment where stable high-voltage supply and compact form factor are required.

Applications

• Laboratory and research high-voltage sources
• Electrostatic coating and testing
• X-ray generator power for diagnostic and inspection systems
• Medical devices and industrial testing equipment

Key features

• Adjustable output: 0–50 kV
• Maximum output current: 1.0 mA; maximum output power: 50 W
• Low ripple (≤0.1% of max output voltage, P-P) and high stability
• Remote control via 0–10 VDC signal plus local potentiometer adjustment
• Integrated interlock and overload protection for safe operation
• Compact dimensions for bench-top or rack integration

Technical specifications

• Model: LPS-50P50B3
• Input Voltage: 24 VDC ± 10%
• Input Current: Max 8.0 A
• Output Voltage Range: 0–50 kV
• Output Current: Max 1.0 mA
• Output Power: Max 50 W
• Stability: <0.01%/hr after 0.5 hr; <0.02% over 8 hrs
• Temperature Coefficient: ≤25 ppm/℃
• Ripple Voltage: 0.1% of maximum output voltage (P-P)
• Voltage regulation (load): 0.01% (no load to rated load)
• Voltage regulation (input): ±0.01% (input ±10%)
• Current regulation (load): 0.01% (no load to rated load)
• Current regulation (input): ±0.01% (input ±10%)
• Dimensions: 73 × 127 × 203 mm
• Weight: 3 kg

Ordering information
Model: LPS-50P50B3. Complete product specifications and datasheet will be available soon; contact the supplier for detailed performance data and integration support.
