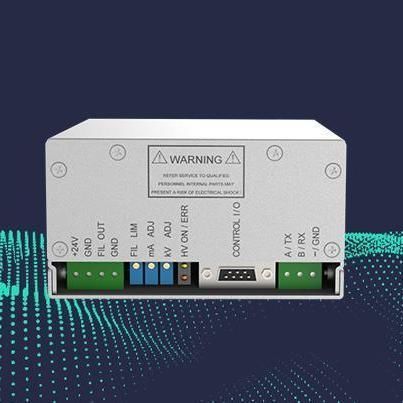

Benchtop power supply LPX-30P30B3

DC/DCsingle-outputadjustable

Introduction
The LPX-30P30B3 is a compact high-voltage power supply providing an adjustable output up to 30 kV and maximum 1.0 mA (30 W). It offers high long-term stability and low ripple, with dual analog and digital control options for local and remote operation. Communication interfaces and built-in safety functions support integration into laboratory and industrial systems.

Output specs
30 kV, 30 W, max 1.0 mA

Key specifications

• Model: LPX-30P30B3
• Output voltage range: 0–30 kV
• Maximum output current: 1.0 mA
• Maximum output power: 30 W
• Input voltage: 24 Vdc ±10%
• Input current: Max 3.0 A
• Stability: <0.01%/hr after 0.5 hr, <0.02%/8 hrs
• Temperature coefficient: ≤25 ppm/℃
• Ripple voltage: 0.1% of maximum output voltage (P-P)
• Load regulation (voltage/current): 0.01% (no load to rated load)
• Input regulation (voltage/current): ±0.01% (input variation ±10%)
• Control: dual analog/digital; local potentiometer; remote 0–10 Vdc signal input
• Communications: CAN, RS-232, RS-485
• Safety: interlock protection, overload protection
• Cooling: natural cooling
• Dimensions: 65 × 115 × 165 mm
• Weight: 1.6 kg

Applications

• Electron beam equipment and small-scale X-ray systems
• Analytical instrumentation and laboratory measurement setups
• Portable and benchtop test equipment requiring compact HV source
• Integration into industrial control systems where remote control and communications are required
