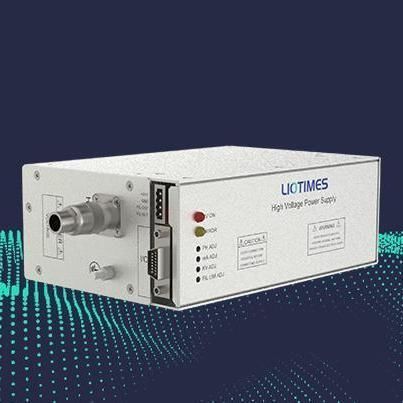

Tabletop power supply LPX-50P50B3

DCsingle-outputadjustable

Brief introduction
The LPX-50P50B3 is a precision high-voltage power supply providing adjustable output from 0 to 50 kV and up to 1.0 mA (50 W). It delivers low ripple (0.1% P-P) and stable long-term performance. Control options include local potentiometer adjustment, remote 0-10 VDC control and digital communication via RS-232/RS-485. The unit incorporates safety features such as interlock and overload protection for system integration in clinical and laboratory environments.

Applications
Intended for medical imaging and laboratory use, this power supply is suitable for X-ray generators, C-arm systems, dental and portable X-ray units, as well as industrial non-destructive testing and scientific instruments (electron microscopy, materials analysis, semiconductor characterization) requiring stable high-voltage excitation.

Technical specifications

• Input Voltage: 24 Vdc ±10%
• Input Current: Max 8.0 A
• Output Voltage Range: 0–50 kV
• Output Current: Max 1.0 mA
• Output Power: Max 50 W
• Stability: 0.5 hr after startup, <0.01%/hr, <0.02%/8 hrs
• Temperature Coefficient: ≤25 ppm/°C
• Ripple Voltage: 0.1% of maximum output voltage (P-P)
• Voltage Load Regulation: 0.01% (no load to rated load)
• Voltage Input Regulation: ±0.01% (input variation ±10%)
• Current Load Regulation: 0.01% (no load to rated load)
• Current Input Regulation: ±0.01% (input variation ±10%)
• Dimensions: 75×139×218 mm
• Weight: 3.5 kg
