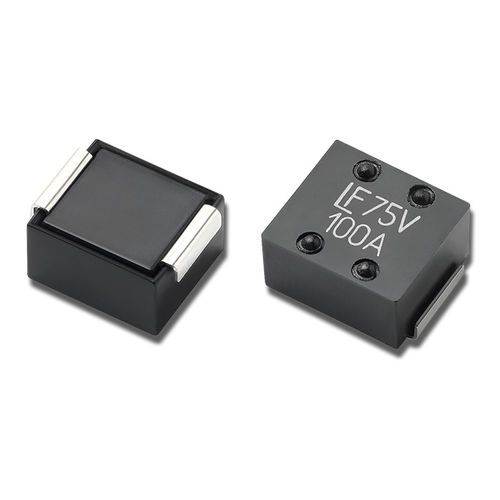

Subminiature fuse 881 series

current-limitinghigh-currentSMD

The 881 Series NANO²® fuse is a relatively small sized, high current, surface-mount fuse which provides over current protection for applications of high operating current in a limited space. Such applications are mostly served today through a single large-sized high-current industrial type fuse or in some cases, parallel configuration of lower amperage SMD fuses. The 881 Series fuses provide the option of a single fuse solution for protection for such application requirements. • Opening time at 200% overcurrent available at 60 secs max. • Very low cold resistance values • Low temperature rise and voltage drop • Wide operating temperature range from -55oC to 100oC • Robust Fuse design • RoHS compliant, Halogen Free, 100% Pb-Free parts • Surface Mount Fuse • Single fuse solution for high current application requirements. Parallel fusing or use of over specked industrial type fuses can be avoided • High wattage equipment can be designed with less board space reserved for protection components • Relatively high interrupting rating will suit a wide variety of applications • Guaranteed protection against overload and short circuit events in applications • Enhance power efficiency by optimized thermal performance and minimizing power loss Applications: • Blade Servers • Routers • Base station power supply • Uninterrupted Power supply (UPS) • High-power Battery Systems • Power Factor Correction (PFC) in high wattage power supplies • Power Distribution Units (PDUs) • Industrial tools
