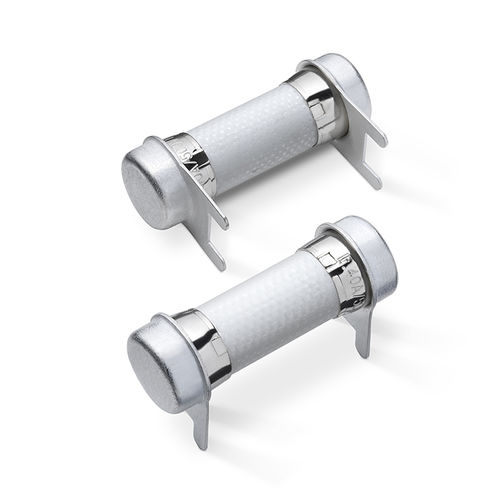

Cartridge fuse 606 series

compactcurrent-limitinghigh-voltage

The 606 series is a 10x32mm cartridge fuse rated at 500VAC with 40A to 63A current ratings and a 2,000A@500Vac interrupting rating. It is designed for over-current protection in high voltage applications. The 606 Series fuse is RoHS compliant and 100% Lead (Pb) free. Features: • Rated for 500V AC with interrupting rating of 2,000A and 40A-63A nominal current rating in the smallest available package • End caps with integrated stand-off leads • Compact body size of 10x32mm • Operating temperature range from -55˚C to 125˚C Applications: • Uninterruptible Power Supply (UPS) • Off-board charging post • Three-phase AC input for charging pile/Electric Vehicle Supply Equipment (EVSE) • Power conversion equipment such as inverters, rectifiers, and so on • Motor protection in elevator systems
