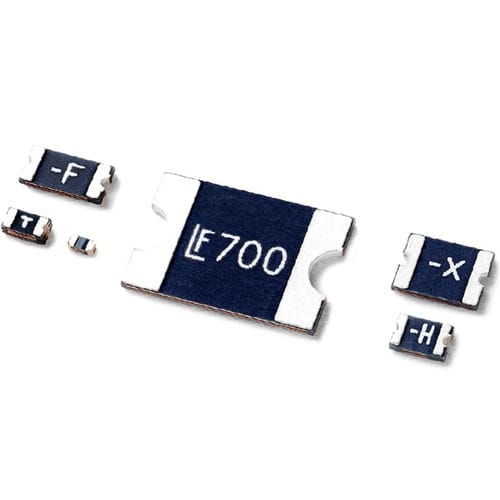

Miniature fuse Low Rho SMD series
resettableSMDelectronic equipment

miniature fuse
miniature fuse
Add to favorites
Compare this product


Characteristics

Configuration
miniature
Type
resettable
Other characteristics
SMD
Applications
electronic equipment
Amperage

Max.: 9,000 mA

Min.: 100 mA

VDC

Max.: 24 V

Min.: 6 V

Description

Littelfuse Low Rho Surface Mount PPTC (Polymer Positive Temperature Coefficient) devices provide overcurrent protection for applications where ultra low internal resistance, ultra low voltage drop and automatic resettable protection are desired. This new series allows a higher hold current device in a smaller factor and lower profile as compared to a standard PPTC. It offers ultra low internal resistance while maintaining the high level electrical characteristics and performances of standard PPTC products. All devices are UL recognized and TUV approved and have maximum fault current of 50A. They are available in 0402 to 2920 sizes while the hold current ranges from 100mA to 9A. Features: Ultra low internal resistance Very thin profile Miniature size saves board space Allows a higher hold current dvice in a smaller factor and lower profile as compared to a standard PPTC Fast response to fault currents Compatible with high temperature solders Broadest range of Hold Current ratings (100mA to 9A) RoHS compliant, Lead Free and Halogen Free UL recognized and TUV approved Applications: USB peripherals including new USB 3.0 / 2.0 ports Li-ion / Li-Polymer battery pack Smart phones Tablet and Notebook PCs E-readers LCD / LED HDTV Computer periperals Digital cameras and video cameras Hard disk drives Game consoles
