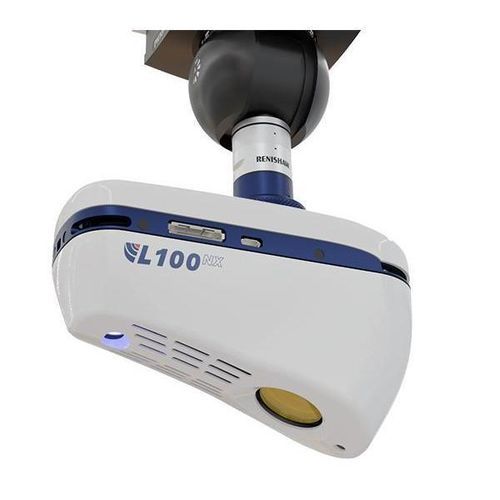

3D laser scanner head L100NX

for 3D application

OverviewExperience a new standard in 3D scanning with the L100NX CMM Laser Scanner — exceptional accuracy and high-speed efficiency for modern manufacturing. Designed for precise surface and feature measurements on reflective or multi-material parts, the L100NX uses advanced blue laser technology for cleaner, more reliable scan data across aerospace, automotive and general manufacturing applications. 10-year original accuracy guarantee.

Key features

• Blue laser precision — Reduces noise in scan data for superior measurement quality compared with traditional red laser systems.
• High-speed scanning — Captures up to 420,000 points per second with a 110 mm stripe width, suitable for efficient inspection of large components.
• Enhanced Sensor Performance (ESP) — Automatic per-point laser power adjustment enables seamless scanning of reflective and multi-material surfaces without manual tuning.
• Reflection filter for shiny surfaces — Built-in filter removes unwanted reflections on glossy materials, eliminating the need for white powder sprays or manual point-cloud cleanup.
• High-quality Nikon optics — Custom-designed Nikon lens ensures optimal data capture and optical performance.
• Integrated rotation adaptor — Allows optimal scanner orientation for complex geometries and improves setup flexibility.
• Field of view projector — Projects the scanner coverage area directly onto the part to simplify programming and setup.

Performance table
Scanner type: Line
Points/second (full field of view): 420,000
Scan rate (full field of view): 210 Hz
Points/second (reduced field of view): 530,000
Scan rate (reduced field of view): 530 Hz
Points per line: 2,000
Resolution: 42 µm

Technical specifications

• Model: L100NX
• Blue laser technology: yes
• Stripe width: 110 mm
• Maximum points/second: 420,000 (full field), 530,000 (reduced field)
• Scan rates: 210 Hz (full field), 530 Hz (reduced field)
• Points per line: 2,000
• Resolution: 42 µm
• Enhanced Sensor Performance (ESP): automatic per-point laser power adjustment
• Reflection filter: built-in for shiny surfaces
• Optics: custom Nikon lens
• Accessories: integrated rotation adaptor, field of view projector
• Target industries: aerospace, automotive, general manufacturing
• Warranty: 10 year original accuracy guarantee
