Laser scanner head XC65DX

Overview

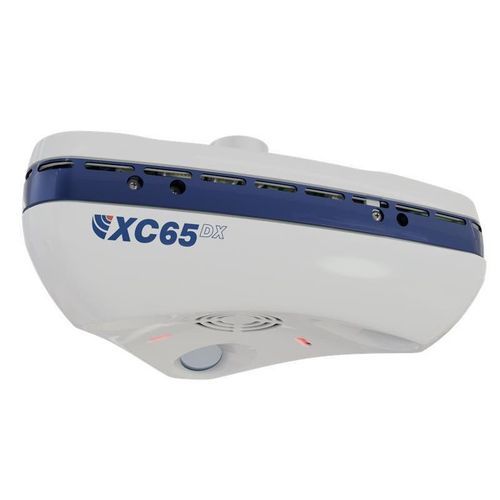

The XC65DX cross scanner integrates three laser stripe scanners in a single sensor. The lasers are spaced 120° apart and capture the part from three angles, enabling acquisition in one scan equivalent to three line-scanner passes. The long-standoff variant preserves these advantages while improving access to recessed or obscured geometries, with a maximum capture distance of up to 170 mm (7.1"). Suitable for feature inspection on sheet metal and complex surfaces, the XC65DX is commonly used in automotive BIW inspection, gap & flush measurement and driveline casting inspection. It is frequently mounted on horizontal-arm CMMs for production metrology.

Key features

• Triple laser-stripe design (three lasers in one sensor, 120° spacing)
• Single-scan data density equivalent to three line-scanner scans
• Long-standoff capability for access to obscured or recessed areas (up to 170 mm / 7.1")
• Suitable for slots, holes, grooves, cavity surfaces and complex large-area geometries
• Common uses: automotive BIW inspection, gap & flush measurement, driveline casting inspection; integration on horizontal-arm CMMs

Technical specifications

• Scanner type: Cross
• Points/second (cross scanner mode): 3 x 25,000
• Points/second (single line mode): 1 x 75,000
• Scan rate: 75 Hz
• Points per line: 900
• Maximum capture distance (long-standoff): up to 170 mm (7.1")
• Laser spacing: 120°

Typical applications

• Inspection of slots, holes and grooves in sheet metal
• Body-in-White (BIW) gap & flush measurement
• Driveline casting inspection
• Scanning over clamps and within cavities on production CMMs
