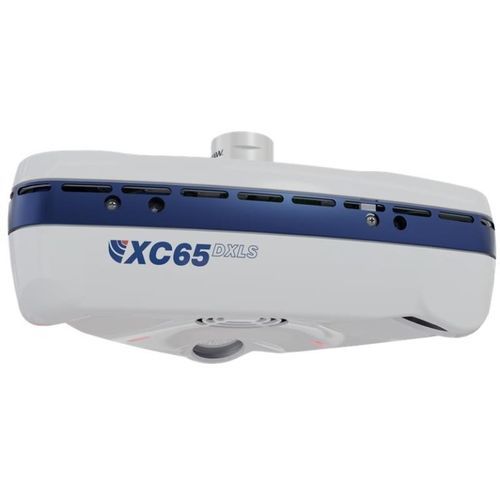

3D scanner XC65DX-LS

edgelasernot specified

This multi-laser scanner captures all 3D details of features, edges, pockets, ribs and freeform surfaces in a single scan. It’s entirely digital 3D digitizing operation boosts scanning frequency and drives smart laser intensity adaptation to scan any surface without user interaction. Its cross pattern of 3 laser stripes allows it to acquire the full 3D view when scanning parts with more complex surface shapes and/or geometric features. Acquiring data at a faster pace makes it possible to drastically increase the velocity of the XC65Dx scanner during inspection. This boosts the number of features that can be scanned in the same time frame, or reduces the inspection cycle time for freeform parts. By continuously scanning parts from 3 different viewpoints, the Cross Scanner obtains a full 3D view of the bore of a hole, or the flanges of a notch. As a result, geometric features can be extracted from the acquired point cloud with higher confidence, increasing the accuracy of feature dimensions obtained through scanning. Scanner Type - Cross Points/second (cross scanner mode) - 3x 25 000 Points/second (single line mode) - 1 x 75 000 Scan rate - 75 Hz Points per line - 900
