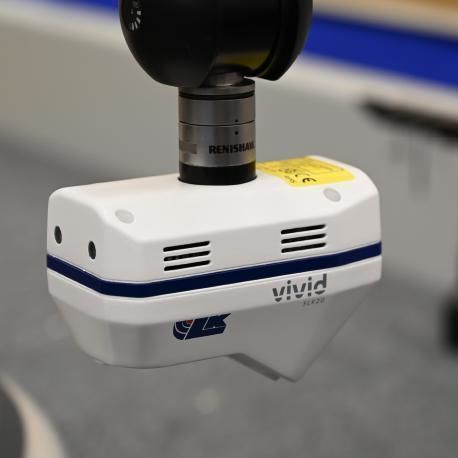

Laser scanner head SLK25
Add to favorites
Compare this product
Description
Overview
The SLK25 VIVID CMM laser scanner is a high-accuracy, high-resolution blue laser line scanner designed as a non-contact alternative to tactile metrology for complex geometries, small details and fragile parts. VIVID multiple-exposure technology multiplies the dynamic range of the scanner, enabling efficient single-pass measurement of dark, transparent and highly reflective surfaces. Phased exposure adapts acquisition to surface properties to optimise speed and data quality. Preset exposure profiles are provided for common applications, with fully configurable user settings for specialist requirements.
Key features
Performance table
Scanner type: Line
Laser line width: 24 mm (0.95 in)
Points per second: 268,000
Resolution (near, mid, far): 9.3 µm, 10.9 µm, 12.9 µm
Scan rate: 140 Hz
Additional product information
Uses VIVID blue laser CMM scanner technology with multiple-exposure sequencing to optimise acquisition for challenging surfaces. Suitable as a high-accuracy alternative to tactile probes for inspection and reverse engineering of complex parts and difficult materials.
Technical specifications
The SLK25 VIVID CMM laser scanner is a high-accuracy, high-resolution blue laser line scanner designed as a non-contact alternative to tactile metrology for complex geometries, small details and fragile parts. VIVID multiple-exposure technology multiplies the dynamic range of the scanner, enabling efficient single-pass measurement of dark, transparent and highly reflective surfaces. Phased exposure adapts acquisition to surface properties to optimise speed and data quality. Preset exposure profiles are provided for common applications, with fully configurable user settings for specialist requirements.
Key features
- Certified accuracy — Fully traceable to international CMM laser scanner standards.
- Variable scanning speed — High-density point clouds for fine details and high-speed scanning for large areas.
- Multiple-exposure scanning — Measure dark, transparent and reflective materials in a single pass.
- Automated programming — Generate inspection programs and scan paths automatically from CAD surface selection.
- Live preview — Remote measurement and program teaching with real-time position feedback.
Performance table
Scanner type: Line
Laser line width: 24 mm (0.95 in)
Points per second: 268,000
Resolution (near, mid, far): 9.3 µm, 10.9 µm, 12.9 µm
Scan rate: 140 Hz
Additional product information
Uses VIVID blue laser CMM scanner technology with multiple-exposure sequencing to optimise acquisition for challenging surfaces. Suitable as a high-accuracy alternative to tactile probes for inspection and reverse engineering of complex parts and difficult materials.
Technical specifications
- Model: SLK25
- Technology: VIVID blue laser CMM scanner (multiple-exposure)
- Scanner type: Line scanner
- Laser line width: 24 mm (0.95 in)
- Points per second: 268,000
- Resolution (near, mid, far): 9.3 µm; 10.9 µm; 12.9 µm
- Scan rate: 140 Hz
- Dynamic range: Quadrupled by VIVID multiple-exposure technology
- Surface capability: Dark, transparent and highly reflective surfaces measurable in a single pass
- Scanning modes: Variable scanning speed for high-density or high-speed acquisition
- Software features: Automated programming from CAD; live preview and remote program teaching
- Exposure settings: Preset profiles with fully configurable user settings
- Traceability: Certified accuracy, fully traceable to international CMM standards
- Warranty: 10-year warranty on original accuracy
