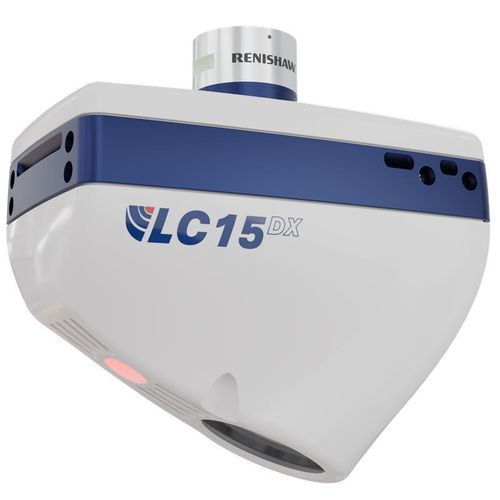

Compact laser scanner head LC15DX

Overview
The high accuracy laser scanner LC15Dx features a small laser line and a higher number of points along said line for a higher resolution, making it one of the most accurate laser scanners available on the market today. The LC15Dx is designed for digitizing compact or detailed objects with high point density and tight tolerances, suited for both surfaces and features. It is commonly used for inspection of high precision parts and closes the gap between laser scanner and tactile probe accuracy, offering a viable non-contact alternative to a tactile probe for many high-precision CMM applications. In testing the LC15Dx achieved accuracy comparable to a tactile probe on a CMM, with a probing error of 1.9 µm. Unlike a tactile probe, the LC15Dx uses non-contact 3D laser triangulation to measure the surface directly and eliminate probe compensation errors.

Key claim
10 year original accuracy guarantee.

Measured performance (table)
Scanner Type: Line
Points/second: 75 000
Scan rate: 80 Hz
Points per line: 900
Resolution: 22 µm

Caractéristiques / spécifications techniques

• Model: LC15Dx
• Scanner type: Line laser scanner
• Measurement method: Non-contact 3D laser triangulation
• Probing error (reported): 1.9 µm
• Points per second: 75 000
• Scan rate: 80 Hz
• Points per line: 900
• Resolution: 22 µm
• Designed for high point density and tighter tolerances; suitable for compact or detailed objects
• Typical use: inspection of high precision parts on CMMs; alternative to tactile probes for many high-precision CMM applications
• Advantage: eliminates probe compensation errors associated with tactile probing
• Warranty/guarantee: 10 year original accuracy guarantee
