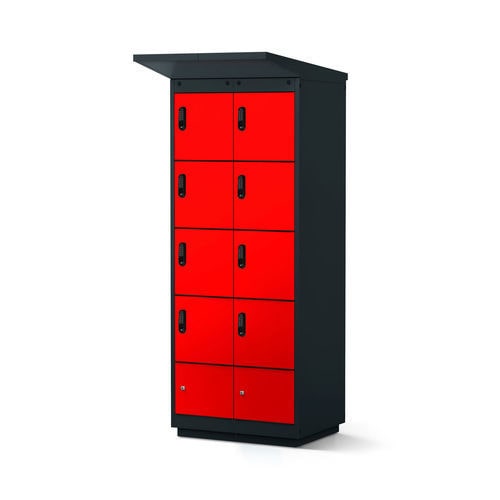

Electric vehicle charging station 2663-020502-0801114

for mobile devicesACoutdoor

Description
E-Bike-charging station - Ideal for electric bikes and other device batteries
With eight spacious compartments and integrated double sockets, the e-bike charging station offers a wide range of applications. Batteries for e-bikes, pedelecs, electric scooters or tools as well as technical equipment can be safely stored and charged at the same time.
The corpus of the charging station is made of moisture- and weather-resistant sheet steel with a UV-resistant stove enamel finish. The double-walled doors allow safe, dust- and moisture-protected storage. They close flush and are particularly tight-fitting thanks to the magnetic catch. The doors also have rubber bumpers to reduce noise.
The charging compartments are each equipped with two IP54 sockets (230 V, 16 A) with overvoltage protection. For optimum accessibility, the sockets in the upper compartments are slightly offset downwards. The charging station also includes two service compartments (bottom).
The rust- and weather-resistant base with leveling feet ensures a secure stand. The base of the charging station is prepared for firm anchoring to the ground.
Quality features

• Robust construction (material thickness: body 1.0 mm; doors 1.5 mm)
• Ideal for e-bikes and electric scooters
• Safe, weather-resistant storage and charging
• Suitable for outdoor use
• Each compartment supplied with two IP54 sockets (230 V, 16 A) with overvoltage protection
• Two service compartments integrated (bottom)
• Doors with magnetic catch and rubber bumpers to reduce noise
• Base with leveling feet and prepared for anchoring

Assembly instructions
The charging station must be installed on a stable concrete foundation with minimum dimensions of 86 x 62 cm and a recommended depth of 50 cm. A cable conduit with connection cable must be routed through the center of the foundation (three-core, minimum cross-section: 2.5 mm²). A drilling diagram for anchoring the charging station is included in the scope of delivery. Detailed information on installation can be found in the operating instructions.

Caractéristiques / spécifications techniques

• Number of doors: 8
• Compartment depth: 60 cm
• Tray height: 36.9 cm
• Tray width: 40 cm
• Locking system: PIN code lock (configurable, service compartment supplied with cylinder lock as standard)
• Loading port / plug type: F-type plug
• Material: Galvanised steel sheet
• Sheet thickness (body): 1.0 mm
• Sheet thickness (door): 1.5 mm
• Height: 215 cm
• Depth: 63 cm
• Width: 86 cm
• Weight: 235 kg
• Sockets per compartment: 2 x IP54 (230 V, 16 A) with overvoltage protection
