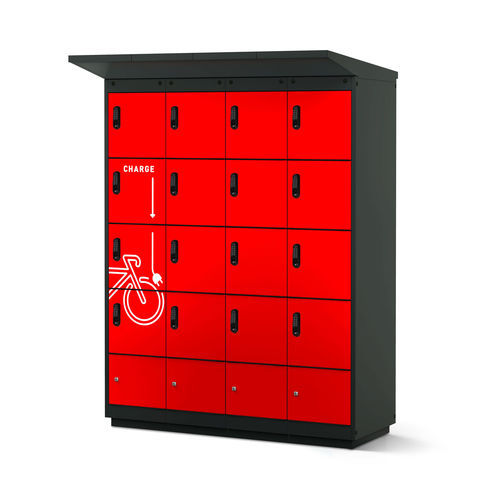

Electric vehicle charging station 2663-040502-1601114ACfloor-mountedoutdoor
Add to favorites
Compare this product
Characteristics
- Options
- for electric vehicles
- Electrical characteristics
- AC
- Mounting
- floor-mounted, outdoor, cabinet
- Number of charging cable
- multiplace
- Output voltage
230 V
Description
Product overview
The LOCKEEL® e-bike charging station provides secure outdoor storage and simultaneous charging for batteries of e-bikes, pedelecs, electric scooters and portable equipment. It features 16 spacious compartments, each fitted with two IP54 sockets (230 V, 16 A) with surge protection.
Construction and protection
The cabinet is constructed from moisture- and weather-resistant galvanised steel sheet with a UV-resistant stove enamel finish. Double-walled doors close flush and are sealed by magnetic catches; rubber bumpers reduce noise during closing.
Electrical and compartments
Each compartment includes two IP54 sockets with overvoltage protection. Upper sockets are slightly offset downward for improved accessibility. The unit includes four service compartments at the base. The rust- and weather-resistant base has leveling feet and is prepared for fixed anchoring to the foundation.
Quality features
Assembly instructions
The station must be installed on a stable concrete foundation of at least 166 x 62 cm (recommended depth: 50 cm). Route a three-core connection cable (min. 2.5 mm²) through the center of the foundation. A drilling template for anchoring and an installation manual are supplied. Detailed installation steps are provided in the operating instructions.
Technical specifications
The LOCKEEL® e-bike charging station provides secure outdoor storage and simultaneous charging for batteries of e-bikes, pedelecs, electric scooters and portable equipment. It features 16 spacious compartments, each fitted with two IP54 sockets (230 V, 16 A) with surge protection.
Construction and protection
The cabinet is constructed from moisture- and weather-resistant galvanised steel sheet with a UV-resistant stove enamel finish. Double-walled doors close flush and are sealed by magnetic catches; rubber bumpers reduce noise during closing.
Electrical and compartments
Each compartment includes two IP54 sockets with overvoltage protection. Upper sockets are slightly offset downward for improved accessibility. The unit includes four service compartments at the base. The rust- and weather-resistant base has leveling feet and is prepared for fixed anchoring to the foundation.
Quality features
- Robust construction (body: 1.0 mm; doors: 1.5 mm)
- Suitable for e-bikes, electric scooters and similar equipment
- Weather-resistant storage and charging for outdoor installation
- Includes four lower service compartments and anchoring preparation
Assembly instructions
The station must be installed on a stable concrete foundation of at least 166 x 62 cm (recommended depth: 50 cm). Route a three-core connection cable (min. 2.5 mm²) through the center of the foundation. A drilling template for anchoring and an installation manual are supplied. Detailed installation steps are provided in the operating instructions.
Technical specifications
- Number of doors: 16
- Compartment depth: 60 cm
- Tray height: 36.9 cm
- Tray width: 40 cm
- Locking system: PIN code lock
- Charging socket: F-type plug (230 V, 16 A)
- Each compartment: two IP54 sockets with overvoltage protection
- Material: galvanised steel sheet
- Sheet thickness (body): 1.0 mm
- Sheet thickness (door): 1.5 mm
- Height: 215 cm
- Width: 166 cm
- Depth: 63 cm
- Weight: 440 kg
- Includes four service compartments (bottom)
- Base with leveling feet; prepared for anchoring
- Finish: UV-resistant stove enamel
- Accessories supplied: drilling template, installation manual, set of marking stickers
