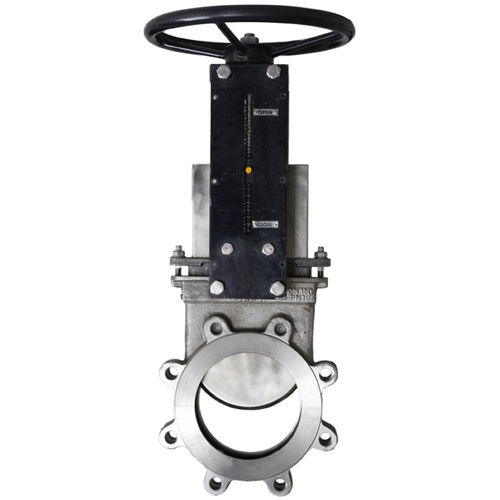

Gate valve EGNA serieswith handwheelelectrically-operatedpneumatically-operated
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- with handwheel, electrically-operated, pneumatically-operated
- Function
- shut-off
- Media
- for water
- Body
- flange, wafer, monobloc, stainless steel
- Applications
- for industrial applications, for the chemical industry
- Other characteristics
- corrosion-resistant
- DN
Max.: 600 mm
(23.622 in)Min.: 50 mm
(1.969 in)- Pressure
3 bar, 4 bar, 6 bar, 8 bar, 10 bar
(43.5 psi, 58 psi, 87 psi, 116 psi, 145 psi)- Temperature
105 °C, 120 °C, 200 °C, 230 °C
(221 °F, 248 °F, 392 °F, 446 °F)
Description
Valves of cast stainless steel with solid monobloc housing
shut off valves also for chemically aggressive liquids
available in various seal types
areas of application:
one part gate valve for industrial use
nominal diameters:DN 50 - 600 (2 - 24")
material:housing of cast stainless steel (1.4408), valve plate of stainless steel (1.4404)
flanges:DIN EN 1092-1, ANSI B 16.5 class 150
