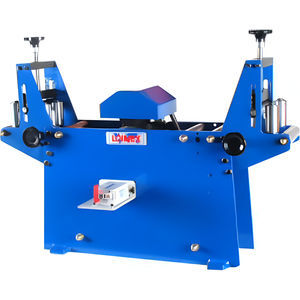

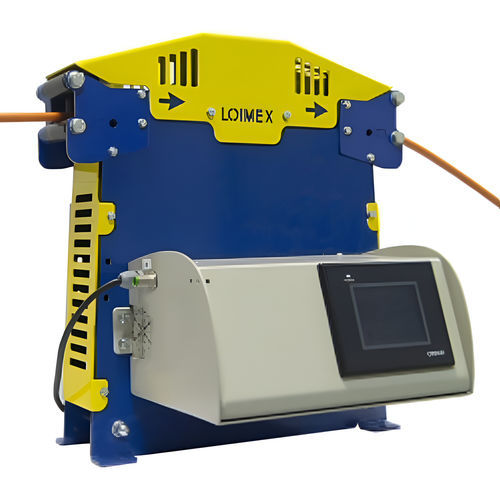

Cable measuring machine M20/S

lengthwirefor industrial applications

The wire and cable measuring device can be used in a fixed position or together with machines for reeling and coiling cables. Constructed for heavy industry production with major components fixed safely inside of the measuring device. Strong entry guide rollers to allow the cable to be fed from reel jacks, racks or unwinding devices. Certification Cable measurer with conformity to the Directive 2014/32/EU, with a high accuracy (± 0,5%), which is liable to certification by any accredited certification body in EU. Range of application Steel wires rope from 1 to 8 mm Ø. Electric cables and cords from 1 to 20 Ø. • Steel housing • Measuring hardened steel wheel with 1000 mm circumference. ( one turn one meter ) • Steel pressure roller with bearings • Dual spring traction and protective cover • Actuated by lever through rack and pinion mechanism • Measure capacity 9999,99 meters. • ± 0,5 % accuracy. Class III • Speed measure: max. 200 meter / minute. • Optional WELMEC 7.2 application with CD-TOUCH-MID3 counter • CE mark Cable diameter : 1 to 8 mm Counter capacity : 9.999,99 mts Counter with preselection : O Accuracy approx. : 0,5 % Measuring wheel pressure : 60N - 80N Steel cable : Dimensions : 360x200x400 mm
