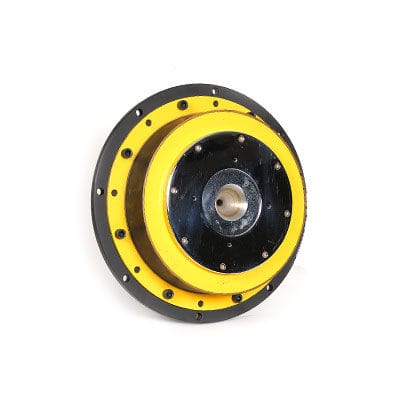

Torsionally rigid coupling LV series
for shaftsflange

torsionally rigid coupling
torsionally rigid coupling
Add to favorites
Compare this product

Characteristics

Type
torsionally rigid
Product applications
for shafts
Installation system
flange
Torque

Max.: 3,600 Nm (2,655.2237 ft.lb)

Min.: 630 Nm (464.6642 ft.lb)

Rotational speed

2,000 rpm (12,566.37 rad.min-1)

Description

The LV series couplings are highly curvature compliant which enables the engine to safely carry a huge inertia load against impairing torsional reverberation and crucial speeds. But, take note that the coupling selection must also be tested with the system's Torsional Vibration Analysis. Moreover, these couplings are built for mounting on regular SAE J620 flywheels. These are accessible in high temper rubber (HTR) or EPDM with a nominal torque range of 10,820 in-lb or 1223 Nm. The LV Series couplings are cost-effective and best suited for common joint driven equipment (agricultural, non-highway) applications and for other configurations.
