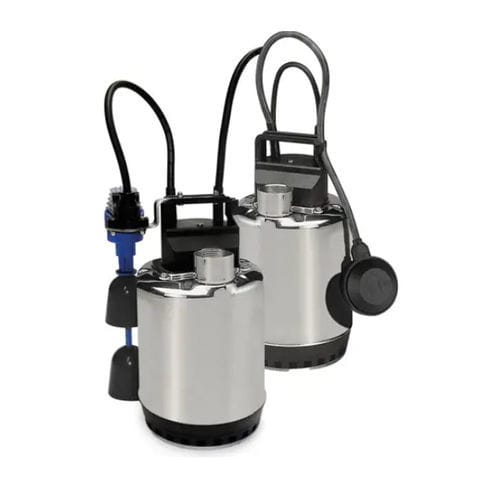

Submersible pump DOC seriesimpellerfor wastewaterelectric
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- for wastewater
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary, mobile
- Domain
- industrial, for wastewater treatment
- Applications
- suction, drainage, dewatering, drainage
- Material
- stainless steel
- Protection level
- corrosion-resistant
- Other characteristics
- compact, automatic, open, integrated
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 14 m³/h
(494.40533 ft³/h)- Head
Min.: 0 m
(0'00" )Max.: 11 m
(36'01" )- Power
Min.: 0.25 kW
(0.34 hp)Max.: 0.55 kW
(0.75 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 40 °C
(104 °F)
Description
Robust design mainly in stainless steel AISI 304
Single phase version with integrated level control
Low level pumping down to 3 mm
Submersible pumps for drainage, infiltration water and emptying of pools, ponds, tanks and reservoirs. The DOC pump is mainly made of stainless steel and the motor has thermal overload protection which makes the DOC versatile, corrosion-resistant and compact. The single phase version has built in capacitor, level regulation and cable with a plug which enables fully automatic operation.
A shallow suction device is available enabling an almost complete drainage of flooded floors (down to 3 mm).
Three basic versions are available:
DOC with open impeller
DOC VX with vortex impeller giving 20 mm free passage for dirty water with solids
DOC GW with non-clogging magnetic float switch system for confined spaces
