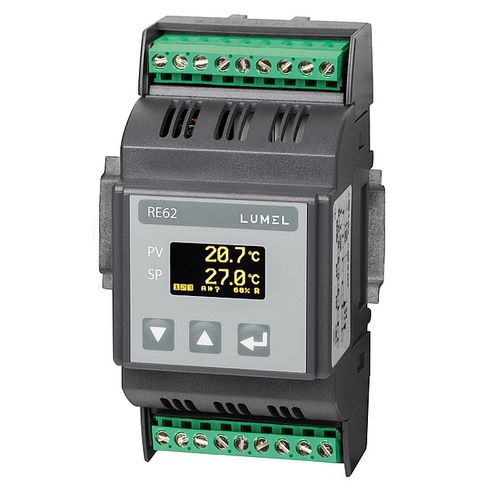

Digital temperature controller RE62

analoggraphicPID

The RE62 controller is destined to control the temperature and other physical quantities (pressure, humidity, level, etc.) in plastics, food, dehydration industries and other where there is a need to stabilize the changes of the measured value. Thanks to modern design RE62 fulfills the requirements for devices mounted in standard modular switchgears. RE62 controller disinguishes itself with advadanced graphic OLED display which guarantees clear indication, high contrast and wide viewing angle. -universal input: for thermoresistors, thermocouples or standard analog signals. -control: dual-point based on SMART PID algorithm (very high accuracy is quaranteed ), on-off and alarm signalization -3 outoputs depending on the execution: -max 3 x relay -max 2 x binary to SSR -max 1 x analog -max 1 x output for supply 24V d.c. -interface RS485 with MODBUS protocol (option) -configuration parameters via keys or an optional RS485 and free eCon software -modular design S type designed for 35 mm rail acc. to EN 62208 standard (meter has a width of 3 modules) -universal supply 22...60V a.c / 20...60V d.c or 60...253V a.c / 60...300 V d.c. -external dimension 53 x 110 x 60.5mm -modułowa obudowa na szynę typu S zgodnie z normą PN-EN 62208 (regulator ma szerokość 3 modułów), -universal supply 22...60V a.c / 20...60V d.c or 60...253V a.c / 60...300 V d.c. -external dimension 53 x 110 x 60.5mm
