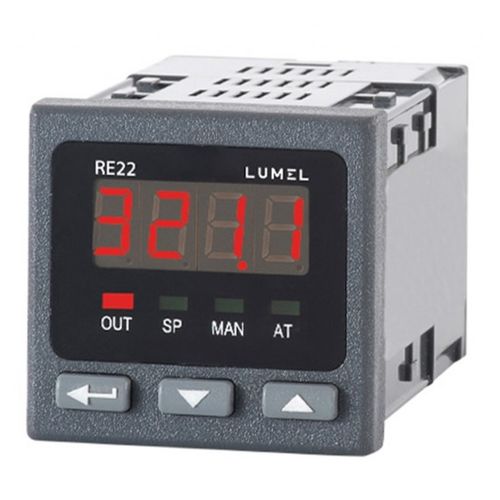

Digital temperature controller RE22PIDIP65heating
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Type
- PID
- Protection level
- IP65
- Use
- heating
- Other characteristics
- universal
- Maximum temperature
Max.: 1,820 °C
(3,308 °F)Min.: -199 °C
(-326 °F)
Description
Controller RE22 type is destined to control temperature in furnaces, dryers, injection molding machines and others.
-input: universal (thermocouples, resistance thermometer, analog standard signals),
-control algorythm: on / off, with hysterezis, PID,
-output: relay, binary 0 / 6V,
-manual setting of PID parameters or by means of the autoadaptation,
-limitation of set point change setting,
-supply: 230 V ac, 110 V ac, 24 V ac,
-external dimensions: 48 x 48 x 93mm
