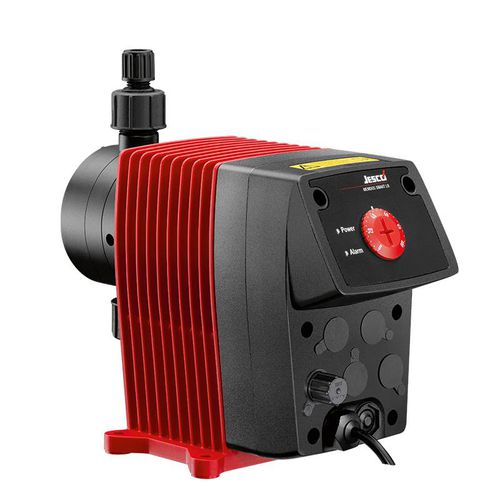

Water pump MEMDOS SMART LB stepper motor-drivendiaphragmstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- stepper motor-driven
- Technology
- diaphragm
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- metering, high-precision
- Material
- stainless steel, PP, PVC, PVDF
- Voltage
- 240 V, 110 V
- Protection level
- IP65
- Other characteristics
- integrated-drive
- Flow
Min.: 2.4 l/h
(0.63401 us gal/h)Max.: 30.7 l/h
(8.11008 us gal/h)- Pressure
Min.: 1.5 bar
(21.756 psi)Max.: 20 bar
(290.075 psi)- Power
25 W
(0.03 hp)- Fluid temperature
Min.: 5 °C
(41 °F)Max.: 80 °C
(176 °F)- Weight
Min.: 2.2 kg
(4.85 lb)Max.: 3.3 kg
(7.28 lb)
Description
The compact stepper-motor pump, coupled with its intelligent drive concept, combines the big advantages of a solenoid-driven diaphragm dosing pump with the precision of a motor-driven diaphragm dosing pump.
The MEMDOS SMART LB series is available in four capacity ranges. The MEMDOS SMART LB's drive is fully adjustable. To adapt the dosing performance, the stroke frequency can be manually adjusted across the range from 0 to 100 %.
Microprocessor controlled drive
Integrated dosing head venting facility (only MEMDOS SMART LB 2, LB 5 and LB 10 with dosing head made of plastic)
Suitable for wall and floor mounting
Material finishes PVC, PP, PVDF and stainless steel
Infinitely adjustable stroke frequency from 0 – 100 %
Release input for external start/stop
CSA and UL certified
