Simple to use and space-saving

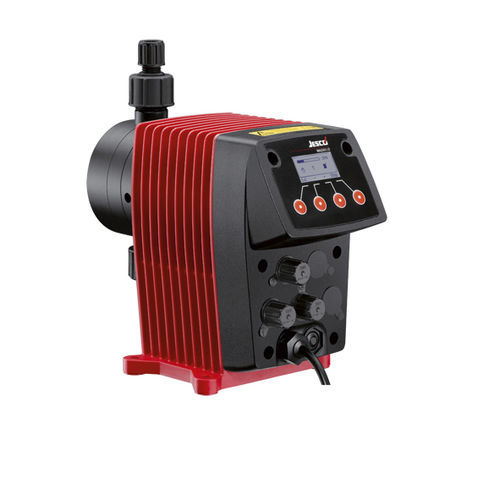

MAGDOS LA plays an important role in the reliable and accurate dosing of liquids in process sequences and is available in seven power ranges. Double-ball valves ensure accurate dosing. To adapt the dosing performance, the stroke frequency can be adjusted manually or by an analogue input signal (0/4 – 20 mA). The dosing pump is compact and, thanks to the small mounting area, can be integrated into every dosing system in a very space-saving way. It can be mounted in three different positions without further attachments: standing, left- or right-oriented on a wall.
Dosing head ventilation
Suitable for wall and floor mounting
Material finishes PVC, PP, PVDF
Stroke frequency can be precisely adjusted via the keyboard
Graphic display
Analogue Input settable 0/4 – 20 mA
Level input with early warning and main alarm
Release input for external start/stop
CSA and UL certified
