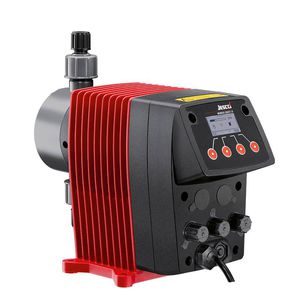

Water pump MAGDOS LB solenoid-drivendiaphragmstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- solenoid-driven
- Technology
- diaphragm
- Mobility
- stationary, mobile
- Domain
- for water treatment
- Applications
- metering, process
- Material
- PP, PVC
- Voltage
- 240 V, 110 V
- Protection level
- IP65
- Other characteristics
- compact, floor-mounted, wall
- Flow
Min.: 0.5 l/h
(0.13209 us gal/h)Max.: 15 l/h
(3.96258 us gal/h)- Pressure
Min.: 3 bar
(43.511 psi)Max.: 16 bar
(232.06 psi)- Power
Min.: 10 W
(0.01 hp)Max.: 29 W
(0.04 hp)- Fluid temperature
Min.: 5 °C
(41 °F)Max.: 80 °C
(176 °F)- Weight
3.2 kg
(7.05 lb)
Description
Simple dosing pump in newest generation
The MAGDOS LB solenoid-diaphragm dosing pump is a good-value alternative for simple and continuous dosing tasks. It is especially suitable for water treatment and the process industry. MAGDOS LB is available for seven capacity ranges. Double-ball valves ensure an accurate dosing. The dosing capacity can be adapted continuously from 0 – 100% through the stroke frequency. MAGDOS is a compact solution which only includes the most important elements for reliable dosing.
