Impeller pump B2 Vario PURE

for dairy productsoilfor food products

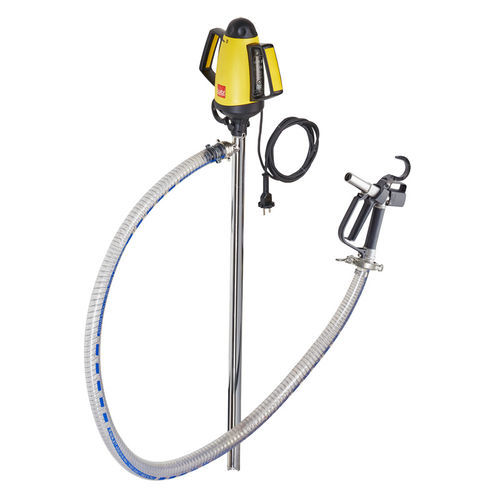

Product information — B2 Vario PURE stainless steel pump set
The B2 Vario PURE pump set is designed for controlled transfer and filling of low‑viscosity media in food production and processing. The set pairs the B2 Vario electric motor with the Niro 28‑R DL PURE stainless steel pump tube. The sealless pump tube is fully dismantlable for cleaning, and the grease‑free stainless steel design reduces the risk of contamination.

Your benefits at a glance

• Adjustable delivery capacity: stepless speed controller adapts flow to different filling volumes.
• Ready‑to‑use set: motor, pump tube, delivery hose, connections and dispensing nozzle supplied in a coordinated configuration.
• Food‑compatible design: PURE stainless steel pump tube for low‑viscosity food media.
• Easy cleaning: pump tube can be completely disassembled for access to product‑contacting parts.
• Precise filling: stainless steel dispensing nozzle for controlled dosing into smaller containers.

Typical applications

• Vegetable oils
• Fruit syrups
• Milk
• Sugar solutions
• Vinegar
• Flavourings
• Low‑viscosity base substances for foodstuffs
• Low‑ to medium‑viscosity syrups

Product properties (from the technical table)

• Model: B2 Vario PURE (stainless steel pump set)
• Combined components: B2 Vario electric motor + Niro 28‑R DL PURE pump tube
• Speed controller: infinitely variable (stepless) for adjustable delivery capacity
• Hose: 1.5 m PVC hose with 3/4" connection, including hose fittings and clamps
• Dispensing: stainless steel dispensing nozzle for precise filling
• Sealless design: pump tube dismantlable and grease‑free for easy cleaning and food suitability
• Maximum flow: up to 66 l/min (22 l/min with nozzle)
• Max. delivery head: 6.7 m wc
• Power: 200 W, Voltage: 230 V, Frequency: 50 Hz
• Protection class: IP24
• Maximum liquid temperature: 90 °C
• Immersion depth options: 700 mm (configurable also 1000 mm option available)

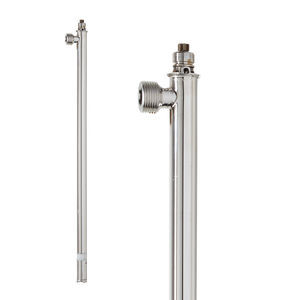

• Pump tube material: Niro (stainless steel); pump tube type: sealless (DL)
• Impeller material: ETFE (ethylene tetrafluoroethylene copolymer); Bearings: ETFE / PTFE
• Viscosity (up to max): 300 mPas
• Delivery head (up to max): 6.7 m wc
• Density (up to): 1.3 kg/dm³
• Drive shaft material: Stainless steel (1.4571)
• Drive type: Electrical
• Type of impeller / Drive type: Rotor (axial conveyor wheel)
• Type of seal: Sealless (DL)
• Suitable fluids: vegetable oils, syrups, milk, sugar solutions, vinegar, flavourings and similar low‑viscosity foodstuffs
