Impeller pump LPS-SX-L-VA-G0

beveragefor solventsalcohol

Product information

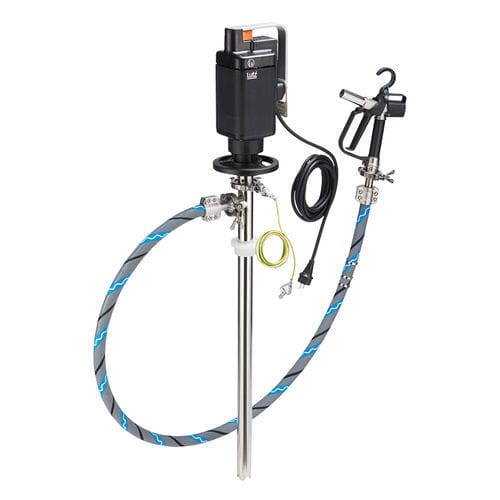

The LPS-SX-L-VA-G0 Sanitary Ex drum pump set is engineered for hygienic transfer of low-viscosity, flammable liquids from canisters, drums and containers. The set includes the explosion-proof Sanitary pump tube, a chosen drive (ME II 8 electric motor or MD2xL pneumatic motor), a 2 m electrically conductive universal chemical hose, drum adaptors, a 2 m equipotential bonding cable and the selected discharge component (stainless steel dispensing nozzle, spout elbow or disc valve with spout elbow). The pump tube is designed for quick dismantling (<30 s) and can be rinsed or integrated into a CIP system using an appropriate device. Smooth, rounded surfaces and a reduced number of components ease cleaning and visual inspection.

Your benefits at a glance

• Hygienic design and explosion protection: Sanitary design with Ex-compliant configuration for use in defined potentially explosive processes.
• Fast cleaning preparation: Pump tube removable in under 30 seconds to shorten maintenance and cleaning cycles.
• Flexible cleaning options: Dismantle, rinse or connect to CIP equipment depending on process needs.
• Electrically conductive discharge line: Conductive universal hose and equipotential bonding cable included for safe transfer of flammable media.
• Drive options: Select ME II 8 electric motor (up to 85 l/min, 15 mWS) or MD2xL pneumatic motor (up to 92 l/min, 18 mWS).

Typical applications

• Distilled spirits and high-proof alcohols
• Flammable alcohols and compatible solvents
• Flammable cleaning agents
• Hygienic processes requiring explosion protection
• Drum and container emptying in potentially explosive atmospheres

Technical specifications

• Type: LPS-SX-L-VA-G0 Sanitary
• Pump tube material: Stainless steel (1.4571 / 1.4404)
• Impeller material: Stainless steel (1.4571)
• Drive shaft material: Stainless steel (1.4571)
• Bearings (material): PTFE
• Mechanical seal (material): Carbon, SiC
• Static seal (material): EPDM
• Connection: Tri‑Clamp
• Tri‑Clamp (DN): 32
• Immersion depth: 1100 mm
• Immersion tube diameter (max): 41 mm
• Flow rate (max): 85 l/min (ME II 8)
• Flow rate with nozzle (max): 50 l/min
• Delivery head (max): 15 mWS (ME II 8)
• Power: 930, 1000 W
• Liquid temperature (max): 120 °C
• Density (max): 1.4 kg/dm³
• Viscosity (max): 150 mPas
• Voltage: 230 V
• Explosion protection: Yes (ATEX / IECEx applicable)
• Certification: ATEX Directive 2014/34/EU, FDA-compliant, Regulation (EC) 1935/2004
• Version: with stainless steel dispensing nozzle (other discharge options available)
