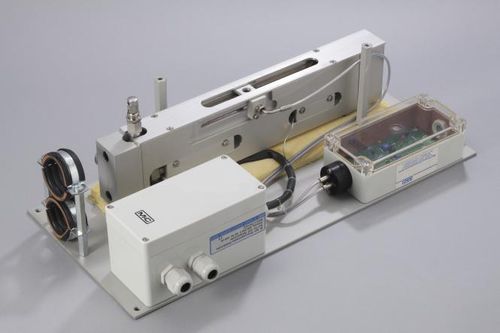

Thermal flow meter FM-200K-H/FAmassfor gaswall-mounted
Add to favorites
Compare this product
Characteristics
- Technology
- thermal
- Type
- mass
- Fluid
- for gas
- Installation
- wall-mounted
- Material
- PTFE, glass
- Protection level
- IP54
- Other characteristics
- with needle valve
- Volumetric flow rate
Min.: 1.6 l/h
(0.4227 us gal/h)Max.: 800 l/h
(211.3376 us gal/h)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 180 °C
(356 °F)- Process pressure
2 bar
(29.01 psi)
Description
- Float-type flow meter with needle valve in the gas inlet
- With monostable, optical flow monitoring w/o evaluation electronics
- Completely electrically heated up to +180 °C [+356 °F]
- With integrated temperature controller
- Mounted on a heat-decoupled mounting plate
- Thermally insulated cover with inspection window
- Measuring range: 25 to 250 Nl/h air
- Gas connections: Ø 6 mm tube fittings
- Material of sample-contacting parts: stainless steel, glass, PTFE
