Variable-area flow meter FM-1 series

volumefor liquidsfor gas

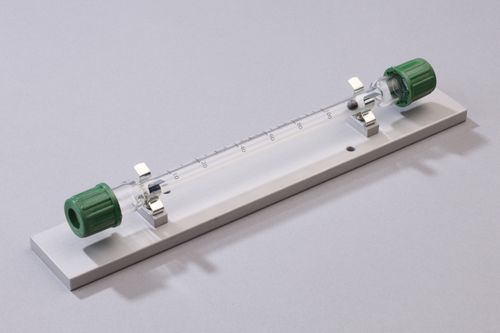

- Float-type flow meter - Connections: GL 18–6 mm - Corrosion-resistant - For wall mounting in a vertical position - Material of sample-contacting parts: glass, PTFE Corrosion-resistant, without needle valve, for wall mounting The M&C flow meters – type FM 1 and FM 10 – which are highly corrosion-resistant are used for controlling the flow in the case of aggressive gases and liquids. The flow tubes are delivered according to your specific operating data, e.g. medium, temperature, pressure. Float‑type flow meter FM‑1/100, corrosion‑resistant version, measuring range: 10 to 100 Nl/h, medium: air, connection: GL 18 ‑ 6 mm, material: PTFE, glass
