Variable-area flow meter FM-40 seriesvolumefor gasDN4
Add to favorites
Compare this product
Characteristics
- Technology
- variable-area
- Type
- volume
- Fluid
- for gas
- Pipe diameter
- DN4
- Installation
- wall-mounted
- Material
- glass
- Protection level
- corrosion-resistant
- Other characteristics
- compact, with needle valve
- Process temperature
60 °C
(140 °F)- Process pressure
3 bar
(43.51 psi)- Precision
6 %
Description
-Float-type flow meter for front-panel mounting
-With fine control needle valve in the gas inlet
-Measuring range: 7 to 70 Nl/h air
-Compact, flat design
-Corrosion-resistant
-Material of sample-contacting parts: glass, PVDF, Viton®
Corrosion-resistant, with needle valve for front-panel mounting or optionally for wall mounting

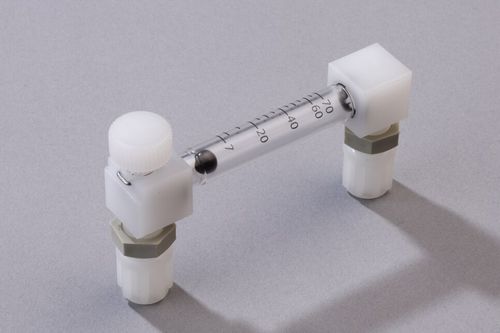

The compact, flat, corrosion-resistant FM40 flow meter for front- panel mounting is used for flow control of gas media in analysis devices and systems.
Float‑type flow meter FM‑40/70 for front‑panel mounting, with needle valve, measuring range: 7 to 70 Nl/h, medium: air, connection: material: PVDF, Viton®, glass
