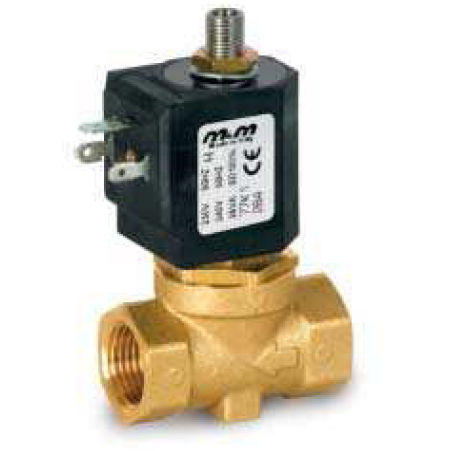

Pilot-operated solenoid valve D337, D339CVU1 2-wayNCIP65
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Body
- IP65
- DN
Min.: 0.25 in
Max.: 0.5 in
- Temperature
Min.: -10 °C
(14 °F)Max.: 50 °C
(122 °F)
Description
Media: vacuum
Media temperature: -10°C ÷ +50°C
Body material: brass (CW617N EN 12165)
Operator material: stainless steel
Seal material: FKM
Coil power: AC 25VA (holding)
AC 50VA (inrush)
DC 22W
Protection class: IP 65 (with connector)
