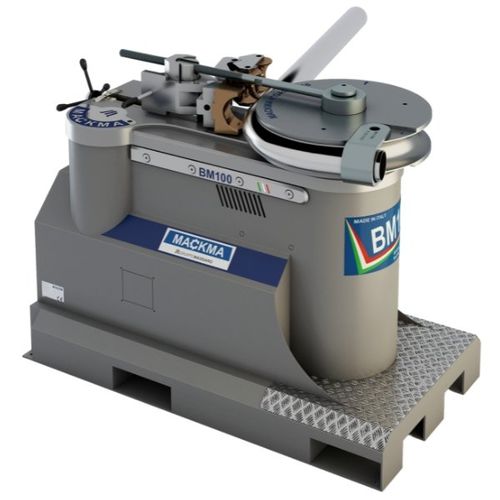

Electric bending machine BM100

tubesemi-automaticwithout mandrel

The BM100 Bending Machine is THE ONLY non mandrel pipe bending machine able to bend tubes and pipes to the left or right, by means of a reversible die holder, designed and patented by us. The innovative design allows the bending of pipes up to 101,6 mm in diameter and 5,74 mm in wall thickness. The BM100-E has 99 programs with each 9 bends for the storage of the bending angles and the spring back angles. The bending angle can be setted by 0,1 degrees, the accuracy of the bending angle is +/- 0,1 degrees (depends on material type). The BM100-E as all our stand floor machines has a foot pedal with integrated emergency button as a standard equipment. With a maximum of 600 mm centre line radius it is capable of maximum performance for this size of machine, even in the most demanding markets. The bend rotation speed [max 1,2 RPM] is monitored by a dedicated inverter, to ensure the correct bending speed according to the diameter and thickness of the tube. Suitable for the following sectors Industrial technical articles Furniture Automotive Motorcycle and boating Sport and wellness items Piping
