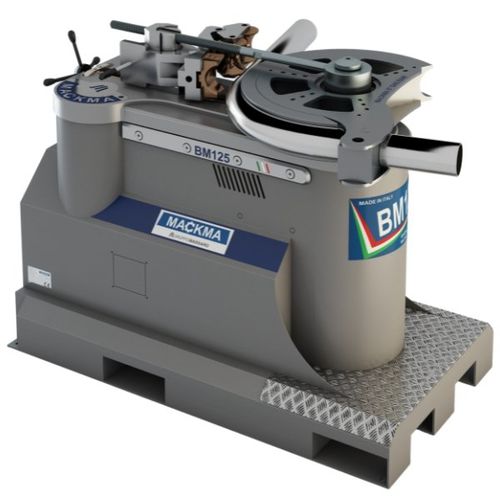

Electric bending machine BM125

tubesemi-automaticprecision

The innovative design allows the bending of pipes up to 114,3 mm in diameter and 8,56 mm in wall thickness. With a maximum of 700 mm centre line radius it is capable of maximum performance for this size of machine, even in the most demanding markets. The bend rotation speed [max 0,98 RPM] is monitored by a dedicated inverter, to ensure the correct bending speed according to the diameter and thickness of the tube. Description The BM125 Bending Machine is THE ONLY non mandrel pipe bending machine able to bend tubes and pipes to the left or right, by means of a reversible die holder, designed and patented by us. The innovative design allows the bending of pipes up to 114,3 mm in diameter and 8,56 mm in wall thickness. With a maximum of 700 mm centre line radius it is capable of maximum performance for this size of machine, even in the most demanding markets. The bend rotation speed [max 0,98 RPM] is monitored by a dedicated inverter, to ensure the correct bending speed according to the diameter and thickness of the tube. The modular design of the bending shaft assembly also allows the use of most competitors tooling, reducing long term tooling costs. The inverter-controlled motor reduces energy consumption to a minimum. The machine is mounted on precision casters for effortless movement around busy workshops and sites Mackma uses only 100% high quality Italian components to ensure long-term reliability. Testament to the high quality of their machines is Mackma’s standard 2 year warranty.
