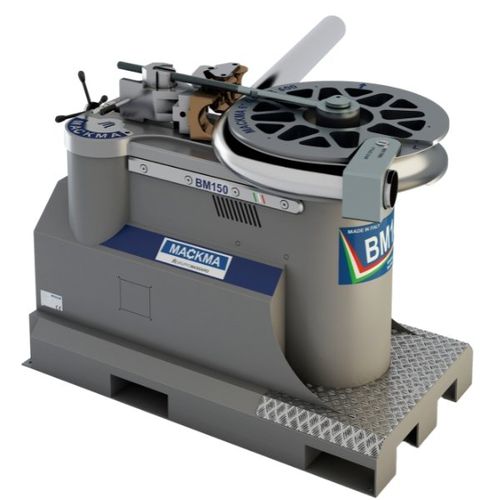

Electric bending machine BM150

foot-operatedtubeprofile

he innovative design allows for bending tubes up to 168.3 mm in diameter with a wall thickness of 7 mm, featuring a minimum radius of 3xOD and a maximum radius of 850 mm. It ensures high repeatability, even for the most demanding markets. The bending axis is controlled by an inverter, allowing rotation speeds from a minimum of 1.0 RPM to a maximum of 2.0 RPM. This is made possible by the installed potentiometer, which enables the operator to select the most appropriate rotation speed for the specific tube being bent. Description The BM150 pipe bender is the only non-mandrel pipe bender that allows for both left and right bending with particular tools we manufacture. Another feature that makes the BM60 pipe bender unique is the connection that allows coupling the tapered internal/external pipe deburring tool. Its innovative design allows you to bend pipes with a diameter up to 141,3 mm for a 9,5 mm thickness with a 3xOD minimum radius and a 850 mm maximum radius. All this ensures high repeatability for even the most demanding markets. The bedning axis is inverter controlled; therefore, the rotational speed ranges between 1.0 revs/min and 2.0 revs/min. This is also possible thanks to the potentiometer installed, which allows the operator to choose the rotational speed that best suits the pipe to be bended. The cantilever head allows the creation of complex figures, which require the pipe to pass under the head. The special shaft system allows the machine to be interfaced with the tools of competition machinery currently available on the market. The inverter controlled motor minimises power consumption. Suitable for the following sectors Furniture Automotive
