Hydraulic fitting 007

for fuelpneumaticthreaded

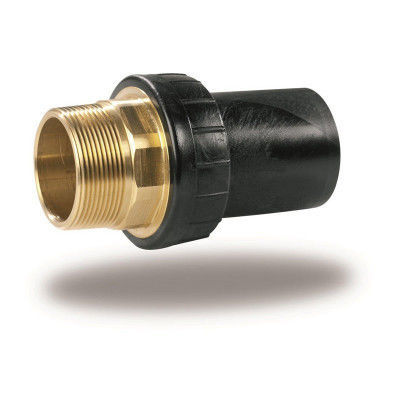

PE/brass GAS male threaded transition adapter (taper). Made by injection moulding, it is used for connection of different materials (one of which is polyethylene) on potable water piping systems. It can be used on gas systems of up to d63x2" too. - Applications: COMBUSTIBLE GAS use, WATER use, DRINKING WATER use, INDUSTRIAL APPLICATION, use for FIRE PREVENTION Materials: - CW612N brass metal body according to UNI EN 12168. - Virgin high density polyethylene PE100 spigot, black. - NBR 70 Sh. A O-ring approved for gas and potable water (DVGW). Certifications: - UNI EN 1555-3 (KIWA KIP-095784) - UNI EN 12201-3 D.M.174 (KIWA KIP-095789) - UNI EN ISO 15494 (KIWA KIP-095785) - DVGW G5600-1 (DW-7521CR0172) - DVGW GW335-B4 (DW-7511CR0155) - ACS C.M. 25.11.02 DGS/SD7A n.571 - PZH POLAND HK/W/0553/01/2012 Technical notes: - Metal/PE connection compliant with standard UNI 9736, with full bore passage. - Certified for use on potable water systems according to M.D. 174 of 2004. - Subject to pressure testing according to ISO 1167 and additional MACPLAST test specification. - Polyethylene dimensions according to UNI EN 1555-3, standard thickness SDR11. - PE weldable spigot for electrofusion UNI 10521 or butt welding UNI 10520. - Tapered male thread, according to UNI EN 10226-1 (exISO7/1) with knurled seal. - Use a hook wrench for tightening. Additional features: - Fitted with internal safety o-ring. More information: - Approved for use on GAS pipelines up to DE63 x 2". Standards: - UNI EN 1555-3 - UNI EN 12201-3 - ISO 4437-3 - ISO 4427-3 - UNI EN ISO 15494 - UNI EN 10226-1 Technical Specifications / Characteristics: - PN 16 bar (water) - MOP 5 bar (gas) - S5 / SDR11 Dimensional Table: Reference | DE (mm) | DN (inch) | DN (mm) | Ø (mm) | L (mm) | T (inch) | Weight (kg) 0070020015 | 20 | 1/2" | 15 | 40 | 95 | R 1/2" | 0.10 0070025020 | 25 | 3/4" | 20 | 45 | 90 | R 3/4" | 0.15 0070032025 | 32 | 1" | 25 | 55 | 105 | R 1" | 0.25 0070032032 | 32 | 1 1/4" | 32 | 55 | 105 | R 1 1/4" | 0.38 0070040032 | 40 | 1 1/4" | 32 | 65 | 120 | R 1 1/4" | 0.40 0070040040 | 40 | 1 1/2" | 40 | 75 | 120 | R 1 1/2" | 0.48 0070050025 | 50 | 1" | 25 | 75 | 115 | R 1" | 0.45 0070050040 | 50 | 1 1/2" | 40 | 75 | 125 | R 1 1/2" | 0.52 0070050050 | 50 | 2" | 50 | 85 | 130 | R 2 1/2" | 0.70 0070063040 | 63 | 1 1/2" | 50 | 85 | 135 | R 1 1/2" | 0.62 0070063050 | 63 | 2" | 50 | 85 | 140 | R 2" | 0.73 0070075050 | 75 | 2" | 50 | 110 | 145 | R 2" | 0.80 0070075065 | 75 | 2 1/2" | 65 | 110 | 155 | R 2 1/2" | 1.20 0070090080 | 90 | 3" | 80 | 125 | 170 | R 3" | 1.60 0070110100 | 110 | 4" | 100 | 155 | 200 | R 4" | 2.90 0070125100 | 125 | 4" | 100 | 155 | 200 | R 4" | 2.90
