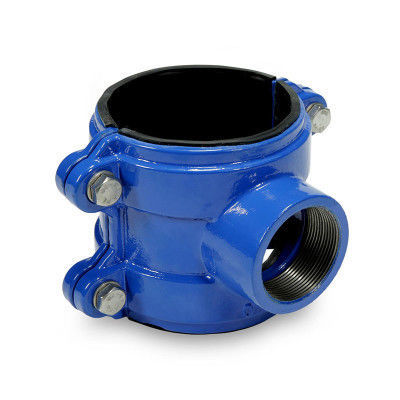

Stainless steel branch saddle 517

for tubespolyethylenetapped

Tapping saddle with two shells for PE/PVC pipeline flow derivation. It can be used permanently even on potable water pipelines. Stainless steel nuts and bolts and thick electrostatic epoxy coating for long-term corrosion resistance. - PN 16 bar Materials: - Covers made of ductile cast iron GJS-500-7 according to UNI EN 1563, with baked electrostatic epoxy powder coating (RAL5005), thick. 250µm, nontoxic. - EPDM sealing double thickness gasket with lamellar sealing seat and profiled edges, compliant with DM174/2004 for use on potable water systems. - AISI 304 stainless steel fixing nuts, bolts and washers. Technical notes: - Offtake inlet for plastic pipelines (PE/PVC). - Certified for use on potable water systems according to M.D. 174 of 2004. - Threaded offtake inlet according to UNI ISO 228-1. - Subject to pressure testing in laboratory. - Application on all types of surfaces, even on rough surfaces. More information: - Operating temperature -10°C / 60°C. - Do not expose to direct sunlight (to preserve the condition of the gasket). Dimensional Table: - DE (mm): 50, 63, 75, 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315 - Z (mm): 90, 115, 120, 140, 180 - U (inch): 3/4", 1", 1 1/4", 1 1/2", 2" - Weight (kg): 1.40 to 8.70 Technical Specifications: - PN: 16 bar - Operating temperature: -10°C to 60°C - Materials: Ductile cast iron GJS-500-7, EPDM gasket, AISI 304 stainless steel hardware - Coating: Epoxy powder, 250µm, RAL5005 - Certifications: DM174/2004 for potable water - Threaded inlet: UNI ISO 228-1 - Pressure tested
