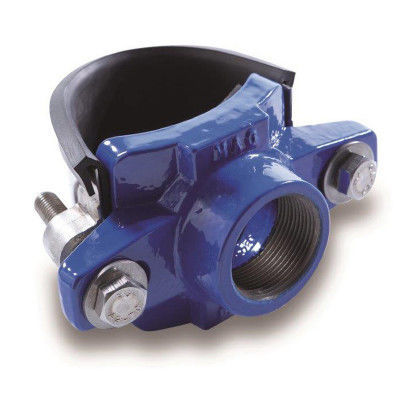

Tube saddle 518

Tapping saddle for PE/PVC, steel, cast iron and fibre cement pipeline flow derivation. It can be used permanently even on potable water pipelines. Stainless steel nuts and bolts and thick electrostatic epoxy coating for long-term corrosion resistance.PN 16 barMaterials:Cover made of ductile cast iron GJS-500-7 according to UNI EN 1563, with baked electrostatic epoxy powder coating (RAL 5005), thick.250µm, nontoxic.Black elastomer coated AISI 304 stainless steel strip, thickness 1.5 mm.NBR rubber gasket, 60 shore hardness, attached to the stainless steel strip in compliance with DM174/2004 for use on potable water systems.AISI 304 stainless steel fixing nuts, bolts and washers.Technical notes:Offtake inlet for plastic pipelines (PE/PVC) and rigid pipelines (steel, cast iron, fibre cement).Certified for use on potable water systems according to M.D. 174 of 2004.Threaded offtake inlet according to UNIISO 228-1.Subject to pressure testing in laboratory.Application on all types of surfaces, even on rough surfaces.More information:Operating temperature -10°C / 60°C.Do not expose to direct sunlight (to preserve the condition of the gasket).Dimensional Table:ReferenceDE (mm)Z (mm)U (inch)Preload min (Nm)Preload max (Nm)Weight (kg)518006302563501"60670.85518006303263501 1/4"60671.10518006304063501 1/2"60671.00518007502575501"75831.00518007503275501 1/4"75831.25518007504075501 1/2"75831.20518009002590801"881001.35518009003290801 1/4"881001.75518009004090801 1/2"881001.60518009005090802"881002.105180110025110801"1101221.605180110032110801 1/4"1101221.855180110040110801
