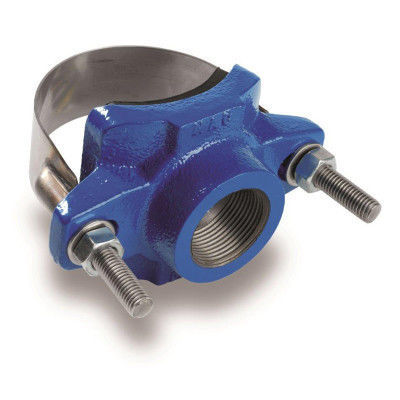

Tube saddle 519

Tapping saddle for steel, cast iron and fibre cement pipeline flow derivation. It can be used permanently even on potable water pipelines. Stainless steel nuts and bolts and thick electrostatic epoxy coating for long-term corrosion resistance.PN 16 barMaterialsCover made of ductile cast iron GJS-500-7 according to UNI EN 1563, with baked electrostatic epoxy powder coating (RAL 5005), thick.250µm, nontoxic.AISI 304 stainless steel strip, thickness 1.5mm.NBR rubber gasket, 60 shore hardness, attached to the stainless steel strip in compliance with DM174/2004 for use on potable water systems.AISI 304 stainless steel fixing nuts, bolts and washers.CertificationsTechnical notesOfftake inlet for rigid pipelines made of steel, cast iron and fibre cement.Certified for use on potable water systems according to M.D. 174 of 2004.Threaded offtake inlet according to UNIISO 228-1.Subject to pressure testing in laboratory.Application on all types of surfaces, even on rough surfaces.Dimensional TableReferenceDN (mm)Z (mm)U (inch)Preload min (Nm)Preload max (Nm)Weight (kg)519005002550401"60680.80519005003250401 1/4"60681.00519005004050401 1/2"60680.90519006002560401"72800.85519006003260401 1/4"72801.15519006004060401 1/2"72801.05519008002580401"881041.15519008003280401 1/4"881041.60519008004080401 1/2"881041.40519008005080402"881041.90519009002590401"1021121.90519009003290401 1/4"1021122.15519009004090401 1/2"1021122.10519009005090402"1021122.355190100025100401"1121261.955190100032100401 1/4"1121262.205190100040100401 1/2"1121262.105190100050100402"1121262.405190125025125401"1401542.105190125032125401 1/4"1401542.405190125040125401
