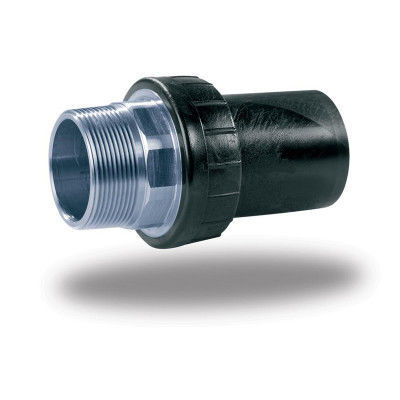

Threaded fitting 151

NPTpolyethylenestainless steel

PE/stainless steel GAS male threaded transition adapter (taper). Made by injection moulding, it is used for connection of different materials (one of which is polyethylene) on potable water piping systems. - Materials: - AISI 316 stainless steel metal body. - Virgin high density polyethylene PE100 spigot, black. - NBR 70 Sh. A O-ring approved for gas and potable water (DVGW). - Certifications: - UNI EN 1555-3 (KIWA KIP-095784) - UNI EN 12201-3 D.M.174 (KIWA KIP-095789) - UNI EN ISO 15494 (KIWA KIP-095785) - DVGW G5600-1 (DW-7521CR0172) - DVGW GW335-B4 (DW-7511CR0155) - WATERMARK AS/NZS 4129 (WM 74644) - PZH POLAND HK/W/0553/01/2012 - Metal/PE connection compliant with standard UNI 9736, with full bore passage. - Certified for use on potable water systems according to M.D. 174 of 2004. - Subject to pressure testing according to ISO 1167 and additional MACPLAST test specification. - Polyethylene dimensions according to UNI EN 1555-3, standard thickness SDR11. - PE weldable spigot for electrofusion UNI 10521 or butt welding UNI 10520. - Tapered male thread, according to UNI EN 10226-1 (exISO7/1) with knurled seal. - Use a hook wrench for tightening. - Additional features: - Fitted with internal safety o-ring. - More information: - On request AISI 316L, AISI 304, AISI 303 stainless steel. - Standards: - UNI EN 12201-3 - ISO 4427-3 - UNI EN ISO 15494 - UNI EN 10226-1 - Technical specifications / Characteristics: - PN: 16 bar - SDR: 11 - Available diameters (DE): 20, 25, 32, 40, 50, 63, 75, 90, 110, 125 mm - Available DN (inch): 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4" - Available DN (mm): 15, 20, 25, 32, 40, 50, 65, 80, 100 - Available Ø (mm): 40, 45, 55, 65, 75, 85, 110, 125, 155 - Available L (mm): 90, 95, 105, 120, 125, 130, 135, 140, 145, 155, 170, 200 - Available types: AISI 316, AISI 316L, AISI 304, AISI 303 - Available T (inch): R 1/2", R 3/4", R 1", R 1 1/4", R 1 1/2", R 2", R 2 1/2", R 3", R 4" - Weight range: 0.10 kg to 2.90 kg - Certified for water, drinking water, industrial applications, and fire prevention - Certified by KIWA, DVGW, WATERMARK, PZH
