Gas fitting 217

butt-weldingthreadedsocket

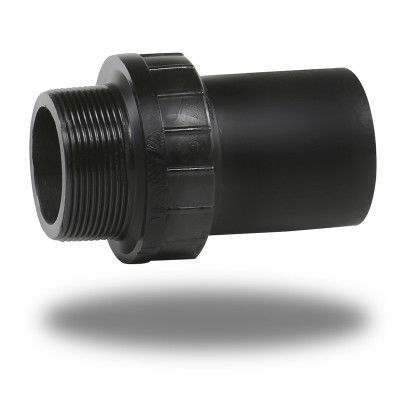

PE GAS male threaded adapter (taper). Made entirely by injection moulding, it serves as a junction on potable water piping systems. - WATER use - DRINKING WATER use - INDUSTRIAL APPLICATION Pressure: PN 10 bar Standard thickness: SDR 11 Materials: - High density polyethylene PE100. Certifications: - WATERMARK AS/NZS 4129 (WM 74644) Technical notes: - W270 certified for use on potable water systems. - Subject to pressure testing according to ISO 1167 and additional MACPLAST test specification. - Polyethylene dimensions according to UNI EN 1555-3, standard thickness SDR11. - PE weldable spigot for electrofusion UNI 10521 or butt welding UNI 10520. - Tapered male thread, according to UNI EN 10226-1 (ex ISO7/1). Standards: - UNI EN 12201-3 - ISO 4427-3 Dimensional Table: Reference | DE (mm) | Ø (mm) | L (mm) | T (inch) | Weight (kg) 2170020015 | 20 | 40 | 85 | R 1/2" | 0.04 2170025020 | 25 | 45 | 88 | R 3/4" | 0.04 2170032025 | 32 | 50 | 95 | R 1" | 0.06 2170040032 | 40 | 65 | 105 | R 1 1/4" | 0.10 2170050040 | 50 | 75 | 110 | R 1 1/2" | 0.13 2170063050 | 63 | 85 | 125 | R 2" | 0.21 2170075065 | 75 | 110 | 136 | R 2 1/2" | 0.34 2170090080 | 90 | 125 | 155 | R 3" | 0.49 2170110100 | 110 | 155 | 170 | R 4" | 0.90 2170125100 | 125 | 155 | 170 | R 4" | 0.94 - Minimum purchase order quantity: 1 piece - Available diameters (DE): 20, 25, 32, 40, 50, 63, 75, 90, 110, 125 mm - Available thread sizes (T): R 1/2", R 3/4", R 1", R 1 1/4", R 1 1/2", R 2", R 2 1/2", R 3", R 4" - Application: Water, Drinking Water, Industrial - Color: Black (typical for PE100) - Manufacturing: Injection moulded - Pressure rating: PN 10 bar - Standard dimension ratio: SDR 11 - Certifications: WATERMARK AS/NZS 4129 (WM 74644), W270 certified - Compliance: UNI EN 12201-3, ISO 4427-3, UNI EN 1555-3, UNI EN 10226-1, ISO 1167, UNI 10521, UNI 10520
