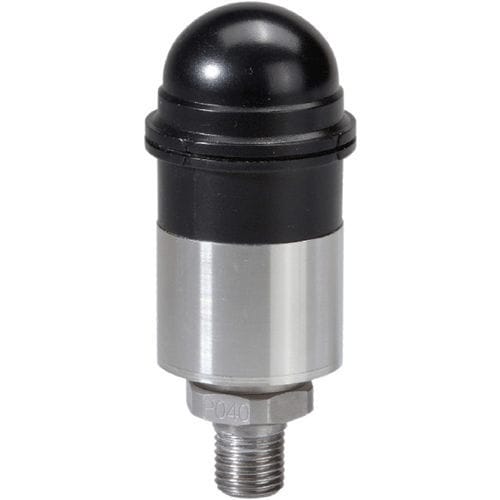

Relative pressure sensor 2910 seriesmembraneBluetooththreaded
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- membrane
- Output
- Bluetooth
- Mounting
- threaded
- Material
- stainless steel
- Protection level
- IP67
- Pressure range
Min.: -1 bar
(-14.5 psi)Max.: 689 bar
(9,993.1 psi)- Precision
1 %
- Process temperature
Min.: -10 °C
(14 °F)Max.: 85 °C
(185 °F)
Description
Bluetooth pressure sensor SPT-Blue Type 20
Medium:
Druckluft, nicht brennbare Gase, Wasser, Hydrauliköl, Kältemittel
Material of casing:
Stainless steel 1.4301, polycarbonate
Material of threaded fitting:
Stainless steel 1.4548
Material of membrane:
Stainless steel 1.4548
Power supply:
Batterie
Battery lifetime:
up to 24 months
Repeating accuracy:
±0,2 % FS
Accuracy:
1 % FSO
Burst pressure:
five times operating pressure or 1,380 bar (the lower value applies)
Max. switching frequency:
1 s
Note:
Range up to 75 m, readable via app, battery operated (battery included), data memory for 32,768 data points
Price information:
Due to price increases on the raw materials market, some items include a surcharge
